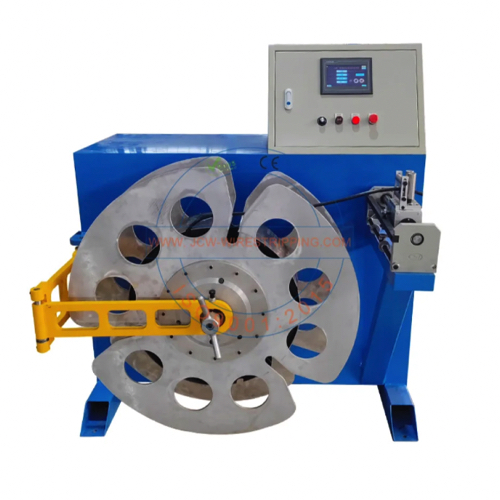

JCW JCW-WB300 Powered Cable Winding Machine (700 mm, 70-150 mm)

Function: Cable winding and laying, cable roll, cable drum, winding speed, load 200 KG, emergency stop button

Max Roll O.D.: 700 mm

Roll Inner Diameter: 300 mm [Optional 200 / 250 / 500 mm]

Roll Width: 70-150 mm

Max Drum O.D.: 700 mm [Customizable]

Max Load Weight: 200 KG

Rated Power: 5.5 KW

Display: 7" color touchscreen, English / Chinese [Other languages on request]

Compatible Peripherals: Cable measuring device, cable prefeeding machine

Measuring Accuracy: 2‰

Measuring Display: Electronic, mechanic

Machine Color: Customizable

Power Supply: 3 x 380V AC

• Robust frame, compact design

• Universal for cable roll and cable drum

• Precise length measuring

• High-speed winding, neat laying

• Customizable for specific requirements
