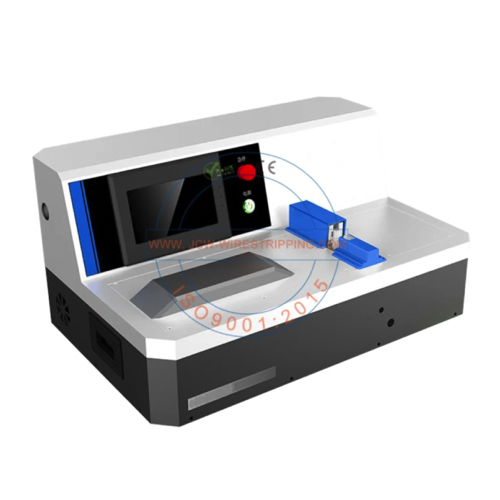

JCW JCW-TS203 Ultrasonic Wire Welding Machine (3000 W, 2~20 mm²)

Work frequency: 20 kHz

Rated power: 3000 W

Cross section area: 2~20 mm², copper & aluminum

HMI: 7" color touch screen

Cycle time: approx 0.7 seconds, depends on wire sizes

Welder lifetime: 100,000 times welding

Power supply: AC 220V ± 10%, 50/60 Hz

Air supply: 0.3-0.6 MPa (clean and dry air)

Dimensions: L 640 x W 420 x H 300 mm

Weight: 55 KG

• Compact design, space-saving

• Servo-motorized system, highly automatic

• Touch screen, user-friendly interface, simple operation

• Fully programmable, fast switch conductor cross-section and width
