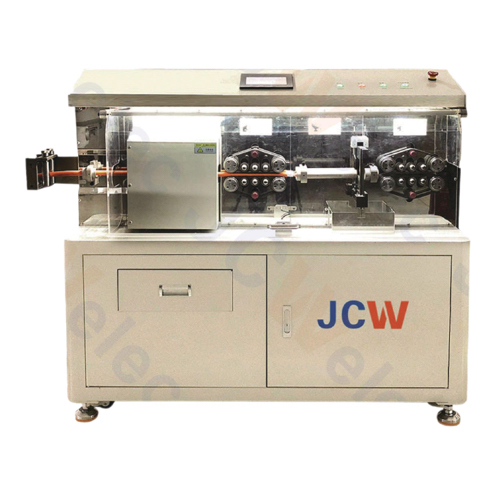

JCW JCW-S700 Fully Automatic EV / Coax Cable Cutting Stripping Machine (3-32 mm, 0.1-999999 mm)

Function: Coaxial cable, EV cable, rotary cutting, cut depth, strip length

Cable diameter: 3-32 mm

Cutting length (L): 0.1-999999 mm

Cutting length accuracy: 0.1 mm

Production rate: 350-750 pcs/h

Stripping length: Front (right) side: 200 mm, Rear (left) side: 250 mm

Display: 7" color touchscreen, English / Chinese [other languages on request]

Compatible peripherals: Wire pre feeder, robot arm, conveyor belt

Data library: 100 programs

Rated power: 1200 W

Air supply: 0.4-0.7 MPa (clean and dry air)

Power supply: AC 110V-220V ±10%, 50/60 Hz

Weight: 320 KG

Dimensions: L 1430 x W 780 x H 1300 mm
