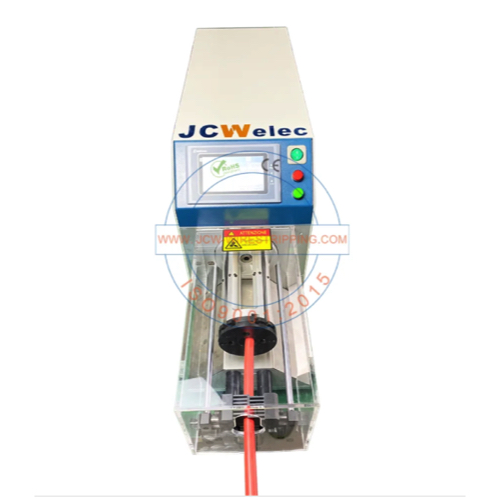

JCW JCW- S600C Max Coaxial Cable Stripping Machine (0.1-350 mm)

Function: Coaxial cable, multistep stripping, rotary stripping, full stripping, partial stripping.

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc.

Cable diameter: 2-25 mm

Stripping length: 0.1-350 mm

Cutting depth increment: 0.01 mm

Blades: 4 pcs

Stripping steps: 9

Production rate: 250-400 pcs/h

Centralizer: Yes

Data library: Yes

OEM: Yes

Display: 4.3" color touchscreen, English / Chinese [other languages on request]

Power supply: AC 110/220 V ± 10%, 50/60 Hz

Dimensions: L 1180 x W 235 x H 400 mm

Weight: 62 KG

• Heavy-duty coax stripping machine

• 2-25mm O.D, 95/200/300 mm strip length

• 4 pcs of blades, rotary stripping

• Minimize the force needed for pull-off

• Maximize the service life of the blades

• Multistep stripping up to max 9 steps

• Fully programmable, save programs with name

• Centralizer, no calibration needed after changing blades
