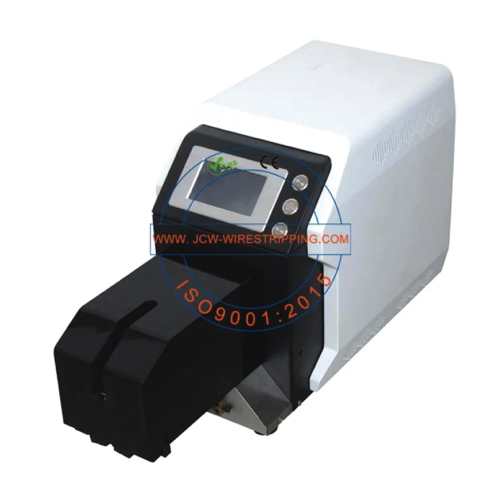

JCW JCW-S500B Semiautomatic Coaxial Wire Stripping Machine (0.1-85 mm)

Function: Coaxial cable, single wire, multicore cable, multistep stripping, rotary stripping, full stripping, partial stripping.

Cable diameter: 1.5-15 mm

Stripping length: 0.1-85 mm

Cutting depth increment: 0.01 mm

Blades: 4 pcs

Stripping steps: 10

Production rate: 600-700 pcs/h

Data library: 99 programs

OEM: Yes

PC Interface: RS232, Foot pedal

Display: 4.3" color touchscreen, English / Chinese [other languages on request]

Power supply: AC 110V-220 V ± 10%, 50/60 Hz

Dimensions: L 640 x W 260 x H 375 mm

Weight: 34 KG
