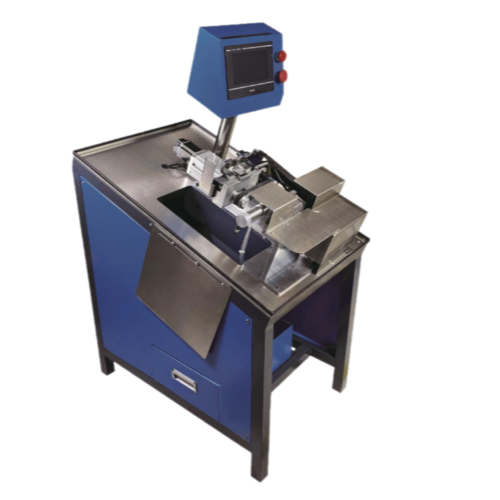

JCW JCW-S04 Servo Motorized Power Cord Cable Cutting Stripping Machine (5-15 mm, 20-290 mm)

Function: Inner wire of multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Different stripping length

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Cutting length (L): 20-290 mm

Capacity: 0.5-3.0 mm²

Data library: 100 programs

Stripping length: 5-15 mm

Display: 7" color touchscreen, English / Chinese [other languages on request]

Air supply: 0.5-0.8 MPa (clean and dry air)

Power supply: AC 110V-220V±10%, 50/60 Hz

Weight: 50 KG

Dimensions: L 900 x W 500 x H 1360 mm
