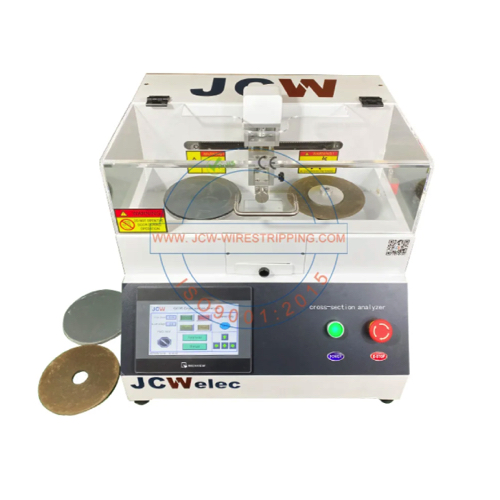

JCW JCW-QC35 Crimp Cross-Sectional Analysis (0.1 - 50 mm²)

Function: Automatic cutting and grinding. Analyze compression ratio C/R, C/H, C/W, and other 10 standard test data

Wire range: 0.1 - 50 mm²

Cutter RPM: 2500

Cutting speed: 1.6 mm/sec

Cutter disc I.D.: 32 mm

Cutter disc O.D.: 150 mm

Cutter disc thickness: 0.5 mm

Grinder RPM: 2500

Grinder diameter: 150 mm

Grinder thickness: 10 mm

Y-axis stepper motor: 42 step, angle 1.8 degrees

Z-axis stepper motor: 42 step, angle 1.8 degrees

Cutting position: Infrared cutting position

Magnification: 26X~260 (Multipliable)

Optical lens: 0.7~4.5 (Pumis high-end stop motion lens)

Video total magnification: 16~260X

Accuracy: 0.004 mm

Illumination: Adjustable LED Ring Cold Light Source

Imaging system: 5 million gigabit network 1/2" professional CCD high-definition imaging system

Body dimensions: L 500 x W 500 x H 450 mm

Weight: 45 KG

Power supply: AC 110 - 220V, 50 / 60 Hz
