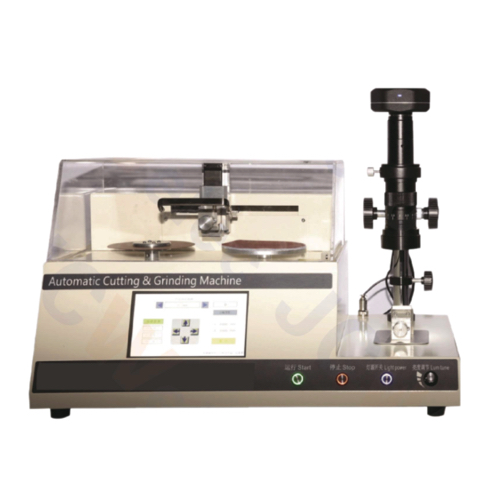

JCW JCW-QC30 Fully-auto Terminal Cross Section Analyzer (AWG4/0-AWG46)

Analyzer: Imported continuous variable power optical system, objective lens magnification 0.7-4.5X

Video total magnification: 65~419X

Wire range: AWG4/0-AWG46 (0.008-120 mm²)

Clamp diameter: Max 20 mm

Accuracy: ±2 µm

Cutting blade: Ф125 x 0.5 mm

Cutting and grinding time: 5-45 seconds

Polishing sandpaper: 125 mm/1500#

Standard optical device: 0.1/10 mm

Imaging system: Basler (Germany), 5 megapixel CCD camera

HMI: 7" color touchscreen, English

Hardware: Cutting motor: SEW (Germany), Grinding and automatic lift motor: Shinano (Japan), X axis motor: Shinano (Japan), Misumi ball screw, Hiwin linear guideway

Lighting: Tunable white lighting device

Rated power: 750 W

Datasheet
