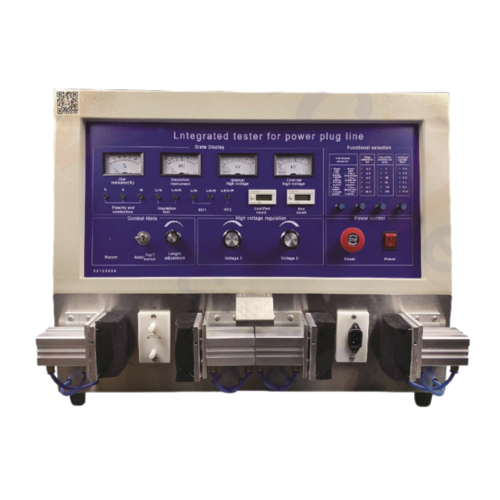

JCW JCW-Q02 Single / Double Power Supply Cord Tester (0-5KV)

Test items: continuity (open circuit), polarity (dislocation), insulation, internal high voltage (core high voltage), external high voltage (exposed copper), relative length

Test methods: Polarity test, jog loop type, single head non-polarity test, induction and jog loop type, parallel/cross-function

Internal/external high voltage 0-5KV independent adjustment

Single-head cable relative length detection function

Qualified and defective automatic indication, counting function

Various specifications and different wires can be tested through the function switch

Insulation setting value: 2, 7, 20, 50, 100, 200ΜΩ

Leakage current setting value: 0.5, 1.0, 3.0, 5.0, 10mA

Insulation test voltage: DC500V
