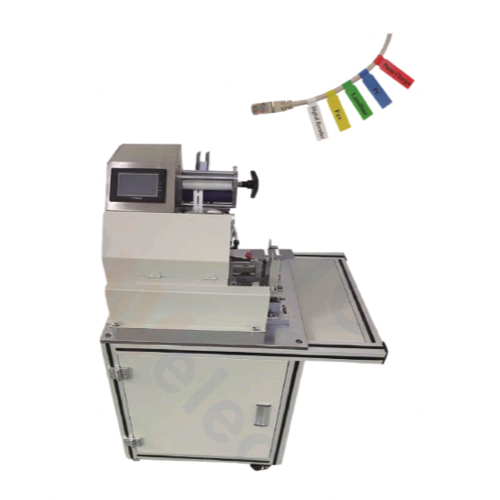

JCW JCW-LB01 Cable Lable Folding Machine (2-8 mm, 10-50 mm x 110 mm)

Wire diameter: 2-8 mm (over 8mm is customizable)

Labeling way: Fold [Wrapping model on request]

Label size: W 10-50 mm x L 110 mm

Base paper: GLASSINE/SCKO

Label roll I.D.: 76 mm

Label roll O.D.: <250 mm

Feed direction: Set word direction by feed direction

Product rate: 20 pcs/min (depends on label size and operator)

Accuracy: ± 0.5mm

Air supply: 0.5-0.6 MPa [clean and dry air]

Power supply: AC 110V-220V ± 10%, 50/60 Hz

Air supply: 0.5-0.7 MPa

Dimensions: L 750 x W 500 x H 1150mm

Weight: 90 KG
