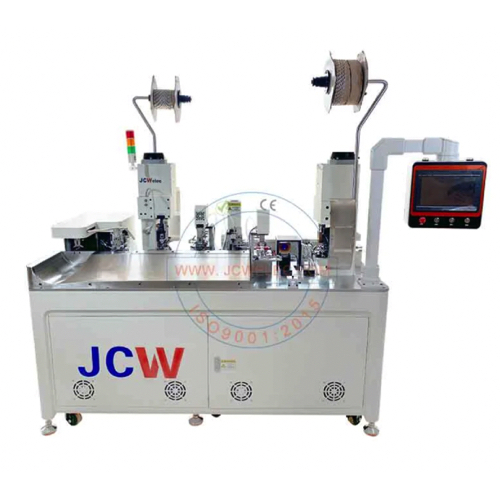

JCW JCW-CST18D Wire Crimping To Heat Shrink Tube Printing & Shrinking Machine (AWG 22-AWG 14, 75-99999mm, 2 tấn)

Function: Single/dual end stripping, Full stripping, Partial stripping, Single/Dual end terminal crimping, Heat shrink tubing cutting, insertion & shrink, Cut depth, Pull-off length.

Wire range: AWG 22-AWG 14

Raw material: PVC, Teflon, Low halogen, etc.

Crimp force: 2 tons [20 KN]

Cut length (L): 75-99999 mm

Cut length tolerance: 0.2mm ± 0.002 x L

Strip length:

Front side: 0.5-8 mm

Rear side: 0.1-10 mm

Production rate: 1000 pcs/h by 150mm cutting length

Data library: 100 programs

Detector: Wire lack, Wire knot, Wire stripping, Terminal crimping, Air pressure

Optional peripherals: CFM, Wire prefeed machine,

Display: 10" touch screen, English / Chinese

Power supply: AC 110/220V ± 10%, 50/60 Hz

Rated power: 3500 W

Air supply: 0.5-0.8 MPa [Clean and dry air]

Weight: 800 KG

Dimensions: L 1800 x W 800 x H 1600 mm

CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

• Fully programmable heat shrink tube processing device

• Cut, strip, crimp, print & shrink all in 1. Print only on request

• Ferrule crimping is available, only on request

• Compatible with all China OTP crimp applicators

• Customizable for adapting Europe mini-style applicator

• High price-performance ratio

• Ultra-compact design, high efficiency

• 10" touch screen user-friendly operation system
