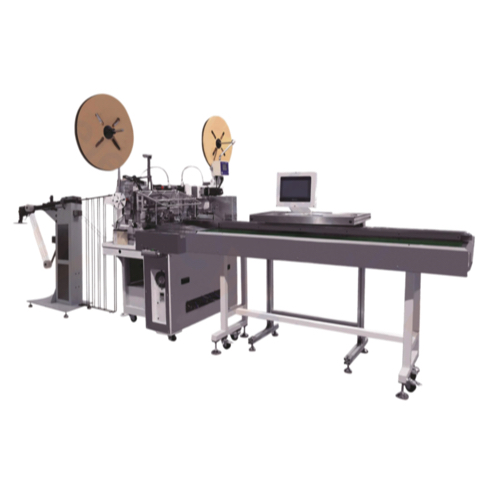

JCW JCW-CST17 Fully-auto Dual-end Wire Sealing Crimping Machine (0.2-2.5 mm², 35-99999 mm, 0-15 mm)

Function: Wire measuring and cut into length, Wire stripping, sealing, crimping; Sealing alarm. Cut depth, Strip length, Crimp depth, Automatic detect and sort out defective product

Raw material: AV, AVS, AVSS, CAVUS, KVKIV, UL

Conductor cross-section: 0.2-2.5 mm²

Cut length (L): 35-99999 mm

Cut length accuracy: 0.1 mm ± 0.005 x L

Strip length: 0-15 mm

Crimping press: Servo motorized

Crimping force: 2.5 tons

Data library: 100 programs

Display: Color touch screen, English / Chinese [other languages on request]

Product rate: 2000-2500 pcs/h by 100 mm wire length [Sealing & Crimping]

Optional peripherals: Upper-computer software, CFM, CCD, Wire prefeeder, Wire stacker

Air supply: 0.5 MPa [clean and dry air], 150 ANR / min

Power supply: AC 110V-220V ± 10%, 50/60 Hz

Dimensions: L 1200 x W 1100 x H 2300 mm

Weight: 525 KG
