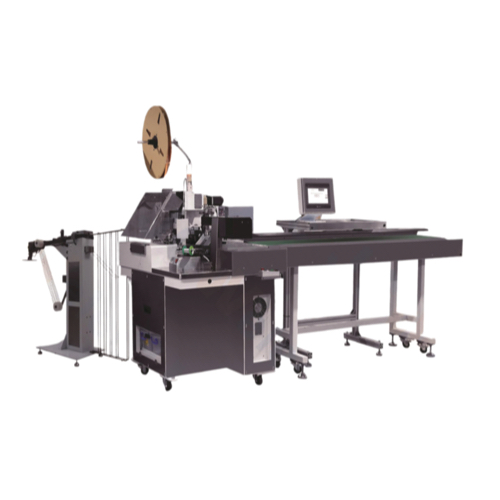

JCW JCW-CST16 Automatic Single Wire Sealing Crimping to Tinning Machine (AWG 28-16, 50-99999 mm)

Raw material: AV, AVS, AVSS, CAVUS, KVKIV, UL

Wire Size: AWG 28-16, O.D. ≤ 0.8 - 3.2 mm

Cut length (L): 50-99999 mm

Cut length increment: 1 mm

Cut accuracy: 0.1 mm ± 0.005 x L

Strip length: 0-15 mm

Twist length: 2-10 mm

Tinning length: 2-10 mm

Crimping press: Servo motorized, 2 tons

Air supply: 0.5 MPa [clean and dry air]

Power supply: AC 110V-220V ± 10%, 50/60 Hz

Dimensions: L 1200 x W 1100 x H 2300 mm, 450 KG

Product rate: 2000 pcs/h by 100 mm wire length [Sealing & Crimping & Tinning]
