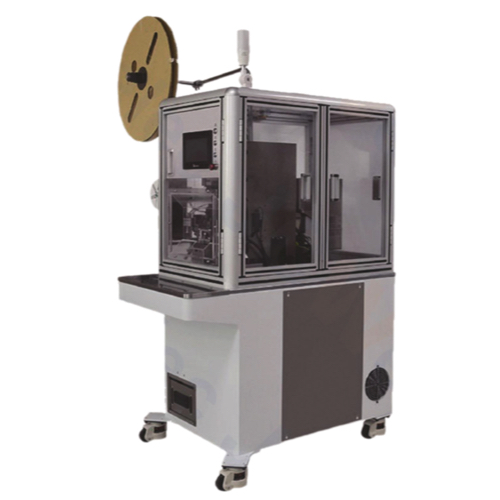

JCW JCW-CST15 Semi-automatic Wire Sealing and Crimping Machine (0.2-2.5 mm², 10 mm, 3 tons)

Function: Sealing, stripping, crimping. Seal feeding, cut depth, stripping length, crimping position. Optional CFM.

Wire range: 0.2-2.5 mm² [AWG 24-14]

Seal type: O.D. x Length ≤ 10 mm x 10 mm

Stripping length: Max 10 mm

Cut depth accuracy: +/- 0.02 mm

Crimp force: 3 tons

Stroke: 40 mm

Cycle time: 4 seconds

Product rate: 1200 pcs/h

Air supply: 0.5-0.7 MPa [clean and dry air]

Power supply: AC 110V-220V ± 10%, 50/60 Hz

Dimensions: L 1100 x W 920 x H 1600 mm

Weight: 350 KG

Display: Touch screen, English / Chinese [other languages on request]
