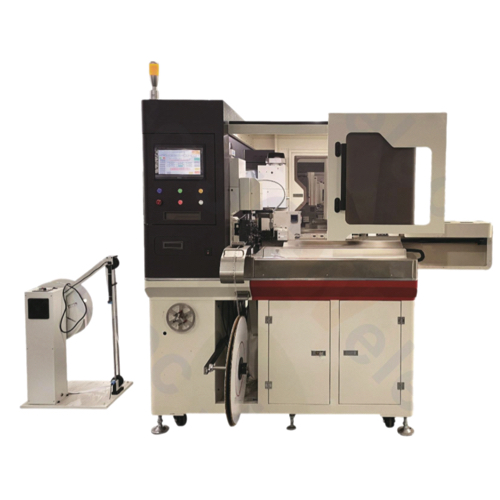

JCW JCW-CST14T Fully Automatic Ribbon Cable Crimping Tinning Machine (AWG 30-AWG 22, 2-10.5 mm, 65-1000 mm)

Stripping length:

Front side: Max 9.5 mm [Customizable]

Rear side: Max 13.5 mm [Customizable]

Wire range: AWG 30-AWG 22

Production rate: 800 pcs/h by 100mm cutting length

Twisting length: 2-10.5 mm [Customizable]

Cutting length (L): 65-1000 mm [Other lengths on request]

Power supply: AC 110V-220V ± 10%, 50/60 Hz

Tinning length: 0.5-13.5 mm

Rated power: 3500 W

Dimensions: L 2130 x W 1530 x H 1900 mm

Air supply: 0.5-0.8 MPa [ Clean and dry air]

Weight: 800KG

Detector: Terminal run-out, Wire run-out, Wire knot, Terminal crimping, Air pressure, Heating
