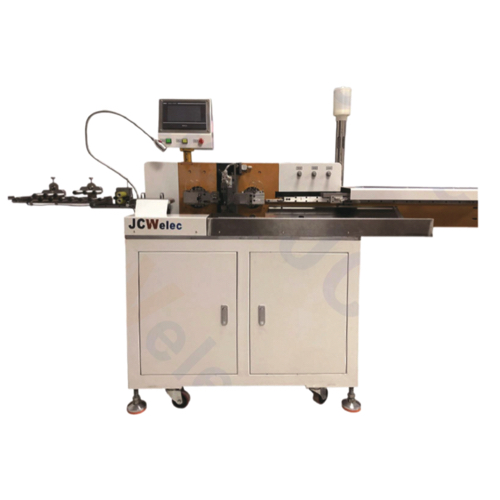

JCW JCW-CST13 Automatic 8 Wires Stripping To Soldering Machine (AWG 32-AWG 16, 8-850 mm)

Function: Single/dual end stripping, Full stripping, Partial stripping, Middle stripping, Double sides fluxing & tinning, Cut depth, Pull-off length.

Wire range: AWG 32-AWG 16

Cutting length (L): 8-850 mm [1200-1500-1800mm on request]

Cutting length tolerance: 0.002 x L

Stripping length: 0.1-11.5 mm

Twisting length: 0.5-10.5 mm

Tinning length: 0.5-10.5 mm

Production rate: 6600 pcs/h by 100mm cutting length

Air supply: 0.5-0.8 MPa [ Clean and dry air]

Power supply: AC 110V-220V ± 10%, 50/60 Hz

Dimensions: L 1720 x W 750 x H 1400 mm

Rated power: 2500 W

Weight: 380KG

Detector: Wire run-out, Wire knot, Wire stripping, Air pressure, Heating
