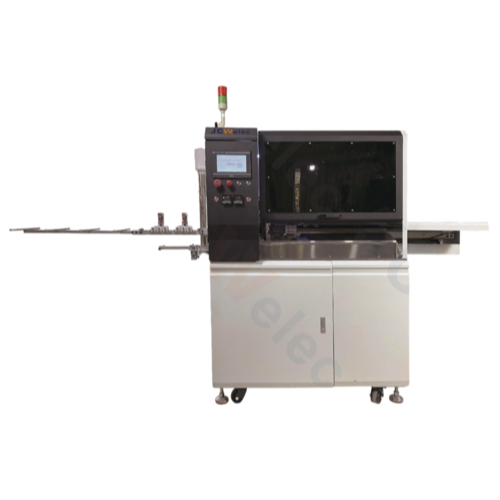

JCW JCW-CST12 Economic Fully-Auto 8 Wires Cut Strip And Tin Solder Machine (AWG 32-16, 12-800 mm, 0-10 mm)

Function: Wire measuring and cut into length, Single-end stripping, Dual-end stripping, Wire twisting, Fluxing, Tinning. Wire lack, Wire knot, Air pressure.

Wire range: AWG 32-16

Cutting length: 12-800 mm

Stripping length: 0-10 mm

Tinning depth: ±20 mm adjustable

Fluxing dpeth: ±20 mm adjustable

Detector: Wire lack, Wire knot, Air pressure

Optional peripherals: Wire unwinder, Conveyor belt

Wire twister: Motorized digital type

Power supply: AC 110V-220V±10%, 50/60 Hz

Air supply: 0.4-0.7 MPa [Clean and dry air]

Weight: 310 KG

Dimensions: L 1200 x W 700mm x H 1500 mm.
