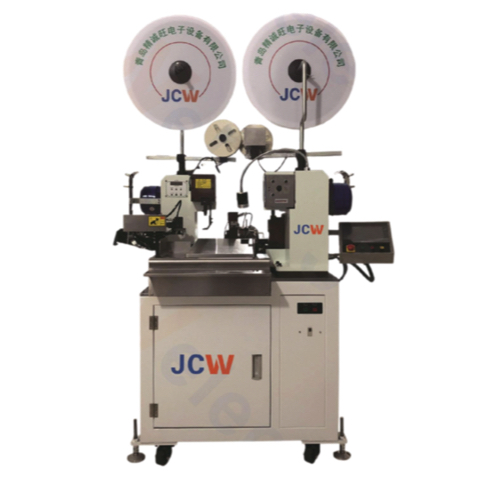

JCW JCW-CST05 High-End Dual-End Small Wire Crimping Machine (0.03-2 mm², 22-99999 mm, 20KN)

Function: Wire pre-feeder, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Pull-off length, Crimp position

Conductor cross-section: 0.03-2 mm² (AWG 32-14)

Stripping length:

Front Side: 0.2 - 8 mm

Rear Side: 0.1-10 mm

Cutting length: 22-99999mm

Crimping force: 20KN (2.0 tons)

Cutting depth adjustment: 0.01mm, max 3.50mm

Production rate: 3600 pcs/h

Rated power: 2200 ~ 2500W

Power supply: AC 110-220V ± 10% 50/60Hz

Air supply: 0.5-0.7 MPa [Clean and dry air]

Weight: 460 KG

Dimensions: L 1400 x W 1000 x H 1800mm

Accessory device: Synchronous wire pre-feeder, paper winder

Optional peripheral: Wire pre-feeder, CFM, wire stacker

Detection: Wire lack, Wire jam, Stripping, Crimping, Air pressure

CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
