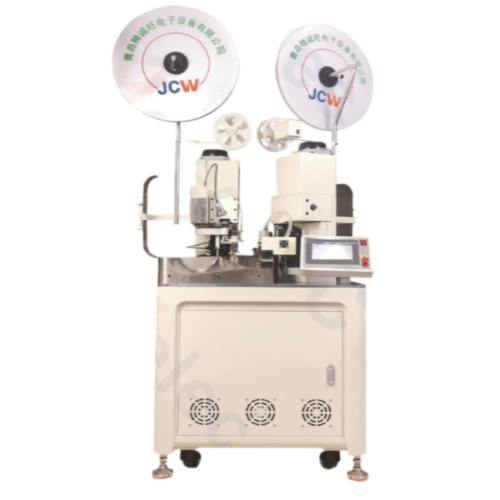

JCW JCW-CST02 Fully Automatic Dual-end Wire Stripping (0.1-2 mm², 20KN, 1.5-10 mm)

Function: Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Pull-off length, etc

Wire cross-section: 0.1-2 mm² (AWG 28-14) [4mm² on request]

Strip length: 1.5-10 mm

Cut length (L): 45-99999 mm

Cut length tolerance: ±1mm +0.002 x L

Crimp force: 20KN (2.0 tons) [40 KN on request]

Detector: Wire lack, Terminal crimping, Wire knot, Air pressure [CFM on request]

Production rate: 4000 pcs/h by 100 mm wire length

Data library: 100 programs

Display: 7" touch screen, English / Chinese [other languages on request]

Power supply: AC 110-220V ± 10%, 50/60 Hz

Air supply: 0.4-0.6 MPa [Clean and dry air]

Weight: 358KG

Dimensions: L 800 x W 700 x H 1500mm

CE-Conformity: Complies with CE equipment guidelines relative to mechanical, electromagnetic compatibility, and electrical safety
