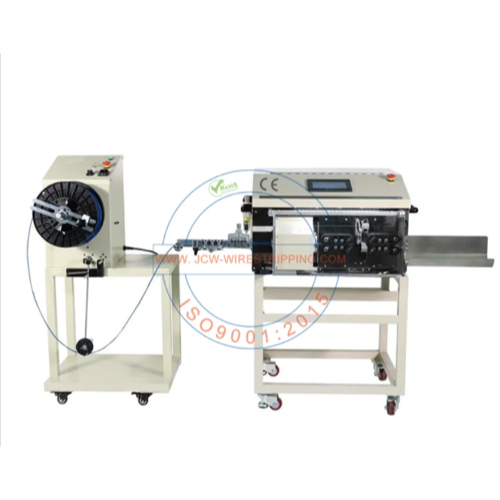

JCW JCW-CS600C Automatic Coaxial Cable Unwind Cut and Strip System (50-9999 mm, 100 mm, 45 mm)

Function: Single wire, multicore cable, coax cable, cut length, cut depth, data library, workbench

Cable diameter: 1.0 - 6.0 mm [1.5-8.5 Customizable]

Cutting length (L): 50-9999 mm

Cutting accuracy: L ± 1%

Cut depth increment: 0.01 mm [PVC insulation]

Stripping length:

Lead side: max 100 mm

Rear side: max 45 mm

Stripping length increment: 0.01 mm

Stripping steps: 6

Product rate: 350 - 900 pcs/h [Depending on cable type]

Data library: 40 programs

Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Rated power: 800 W

Display: English / Chinese [customizable]

Dimensions: L 790 x W 730 x H 400 mm

Weight: 120 KG

• High-precision cutting accuracy 0.1mm

• Rotary cutter head, wide cable range

• Cable diameter ranging from 1.0 to 6.0mm

• Customizable to 8.5mm diameter coax cable

• Automatic product line, professional cable prefeeder
