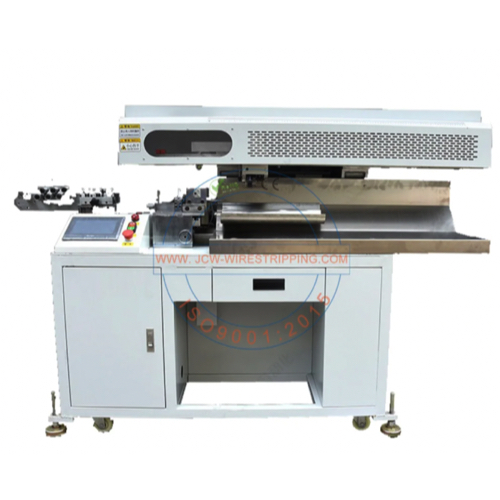

JCW JCW-CS22 Ultra High-Speed Cable Cutting Stripping Machine (45 - 99999.9 mm, 200 mm)

Function: Single wire, Multicore cable, ribbon cable, power cord, shield cable, wire rope. Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed.

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Cable diameter: Max 12 mm

Cutting length (L): 45 - 99999.9 mm

Cutting length accuracy: 0.002 x L

Stripping length: 200 mm

Pull length: Single pulling 950mm, multi-pulling is available

Pull accuracy: ± 1mm

Pull times: 25 times per minute

OEM: Yes

Display: 7" color touchscreen, English / Chinese [other languages on request]

Compatible peripherals: Wire prefeeder, conveyor belt

Rated power: 1000 W

Power supply: AC 220 V ± 10%, 50 / 60 Hz

Dimensions: L 1750 x W 750 x H 1500 mm

Weight: 280 KG

• Versatile machine, ideal solution for cutting stripping special cables

• Effective for processing long cables, Ultra high-speed

• Servo motorized wire stripping machine

• Single pulling length 950mm, multi-pulling is available

• PVC coated wire rope cutting stripping machine

• Capable of cutting and stripping wire rope
