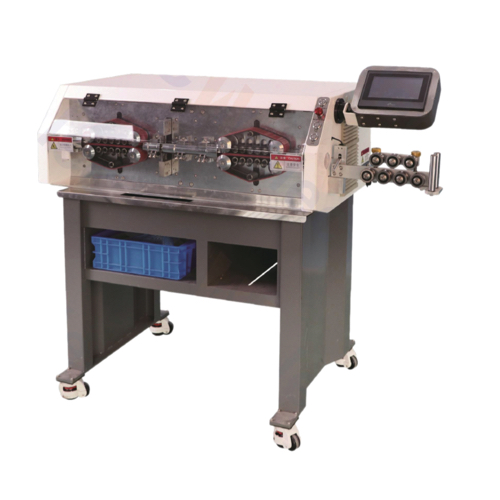

JCW JCW-CS20 Servo Motorized HV Cable Cutting Stripping Machine (10-150/240 mm², 1-99999.9 mm)

Function: Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc /

Conductor cross-sections: 10-150/240 mm²

Cable diameter: Max 30 mm

Cutting length (L): 1-99999.9 mm

Stripping length:

Front (right) side: 1-800 mm

Rear (left) side: 1 - 260 mm

Display: 7" color touchscreen, English / Chinese [other languages on request]

Compatible peripherals: Cable splitter, wire prefeeder, robot arm, conveyor belt

Feeding system: 32 rollers, belt-driven

Production rate: 1800 pcs/h [depends on cutting length]

Power supply: AC 110V-220V ± 10%, 50/60 Hz

Dimensions: L 1580 x W 1650 x H 1320 mm. 240KG
