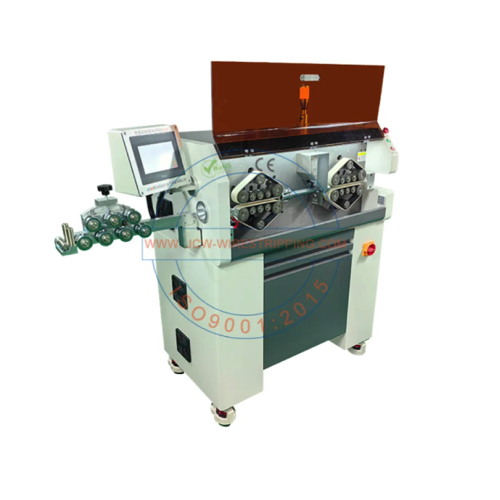

JCW JCW-CS19B Welding Cable Cutting Stripping Machine (10 - 120 mm², 1 - 99999.9 mm)

Function: Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Conductor cross-sections: 10 - 120 mm²

Cable diameter: 4 - 24 mm

Guide tube: 8 sets

Cutting length (L): 1 - 99999.9 mm

Cutting length accuracy: 0.002 x L

Stripping length:

Front (right) side: 1 - 200 mm

Rear (left) side: 1 - 200 mm

Feeding system: 20 rollers, belt-driven

Blade material: High-speed steel

Blade type: V-blade, radius blade

Production rate: 700-1000 pcs/h [depends on cutting length]

Data library: 100 programs

OEM: Yes

Display: 7" color touchscreen, English / Chinese [other languages on request]

Compatible peripherals: Printer, coiler, wire prefeeder, robot arm, conveyor belt

Rated power: 1800 W

Power supply: AC 110-220 V ± 10%, 50/60 Hz

Dimensions: L 980 x W 580 x H 1200 mm

Weight: 280 KG

• Servo motorized cutter head

• High-quality belt, high-precision cable feeding

• Good quality high-speed steel make blades

• Fully covered safety guard with interlock sensor

• Low maintenance, user-friendly
