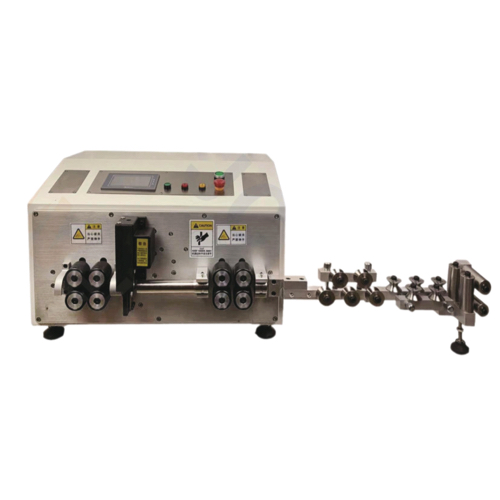

JCW JCW-CS18 Automatic 70SQ Big Cable Cutting and Stripping Machine (4-70 mm², 1-99999.9 mm)

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Conductor cross-sections: 4-70 mm²

Cable diameter: Max 20 mm

Cutting length (L): 1-99999.9 mm

Stripping length:

Leading (left) side: 1-270 mm

Trailing (right) side: 1-140 mm

Cutting length accuracy: 0.002 x L

Feeding system: 8 rollers

Compatible peripherals: Wire prefeeder, robot arm, conveyor belt

Production rate: 1500 pcs/h [depends on cutting length]

Dimensions: L 620 x W 540 x H 410 mm. 85KG

Power supply: AC 110V-220V±10%, 50/60 Hz
