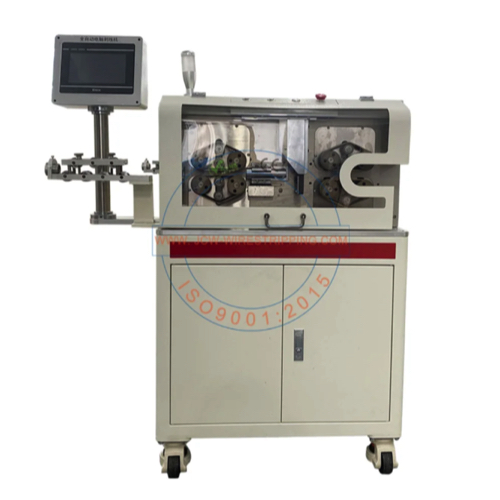

JCW JCW-CS17 Automatic 70mm² Cable and Wire Cut Strip Machine (70 mm², 0.1 - 999999 mm)

Function: Wire measuring, Cut into length, Full stripping, Partial stripping, Length correction

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass

Conductor cross-sections: Max 70 mm²

Cable diameter: φ5 - φ18 mm

Cutting length (L): 0.1 - 999999 mm

Cutting length accuracy: 0.002 x L

Stripping length:

Front (right) side: 250 mm

Rear (left) side: 100 mm

Stripping accuracy: 0.01 mm

Production rate: 2000 pcs/h by 500mm wire length

Data library: 100 programs

Display: 7" color touchscreen, English / Chinese [Other languages on request]

Compatible peripherals: Wire prefeeder, conveyor belt

Wire feeding: Belt feeding system, 12 rollers

Power rating: 1500 W

Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply: 0.5-0.8 MPa (clean and dry air)

Dimensions: L 720 x W 650 x H 1120 mm

Weight: 180 KG

• Heavy-duty cable up to 70mm² or 18mm diameter

• High-quality belt feeding system ensure precise feeding

• Servo motors controlled system on cutter and roller

• Imported high speed steel blade

• Quickly change guide tube
