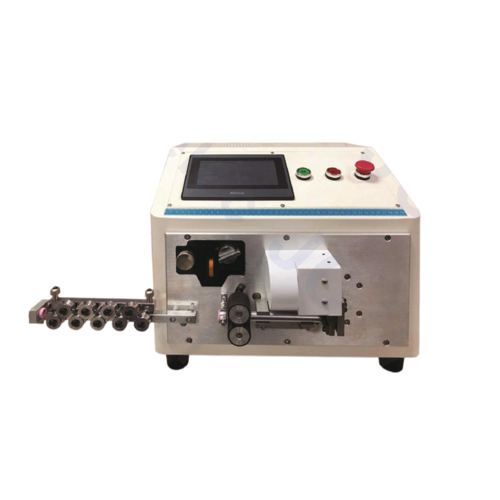

JCW JCW-CS10A 6mm² Automatic Wire Stripping and Bending Machine (0.5-6 mm², 0.1-99999 mm)

Function: BV wire, Wire end stripping, Wire bending, Cut depth, Horizontal bending, 30°-90°, Data library

Conductor cross-sections: 0.5-6 mm² [AWG 20-9]

Cutting length (L): 0.1-99999 mm

Stripping length: Max 50 mm

Bending numbers: 16

Bending degree: 30°-90°

Data library: 100 programs

Power supply: AC 110V-220V ± 10%, 50/60 Hz

Air supply: 0.4-0.7 MPa [clean and dry air]

Dimensions: L 460 x W 500 x H 440 mm

Weight 45 KG
