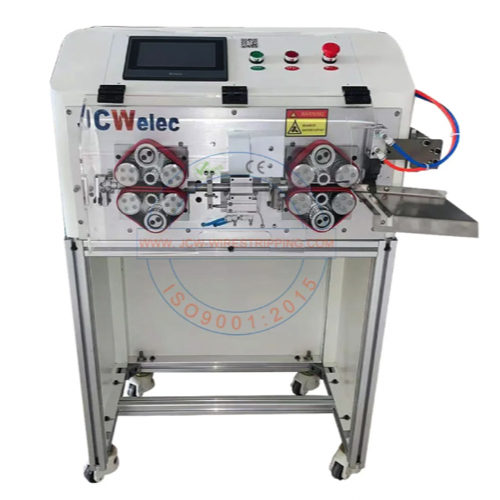

JCW JCW-CS07T Freestand Servo Motorized Belt Feed Multicore Cable Cut & Strip Machine (0.1 - 16 mm², 0.1 - 999999 mm)

Function: Multicore cable, Single wire, Wire measuring, Cut into length, Full stripping, Partial stripping, Wire lack sensor, Length correction

Raw material: PVC, Teflon, Silicone, Low halogen, Fiber glass, etc

Cable diameter: 14 mm

Conductor cross-sections: 0.1 - 16 mm² [AWG 28 - 6]

Cutting length (L): 0.1 - 999999 mm

Cutting length accuracy: 0.002 x L

Stripping length:

Leading (right) side: 400 mm [partial stripping]

Trailing (left) side: 180 mm [partial stripping]

Production rate: 1200 pcs/h

Data library: 100 programs

Feeding unit: Servo motorized belt system

Display: 7" color touchscreen, English / Chinese [other languages on request]

Compatible peripherals: Cable prefeeder, robot arm, cable stacker

Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply: 0.4 - 0.7 MPa (clean and dry air)

Dimensions:

Machine: L 700 x W 560 x H 1050 mm

Wire straightener: 350 mm

Weight: 110 KG

• Servo motorized belt feeding unit

• Upper and lower rollers open & close simultaneously

• Uniform center points of rollers, guides, and cutter blades

• Roller distance and pressure all programmable via touchscreen

• Wire run-out sensor gives machine stop signal

• 7" color touchscreen simplify programming

• Automatically calibrate the cutting length

• Heavy-duty cable up to 14 mm O.D
