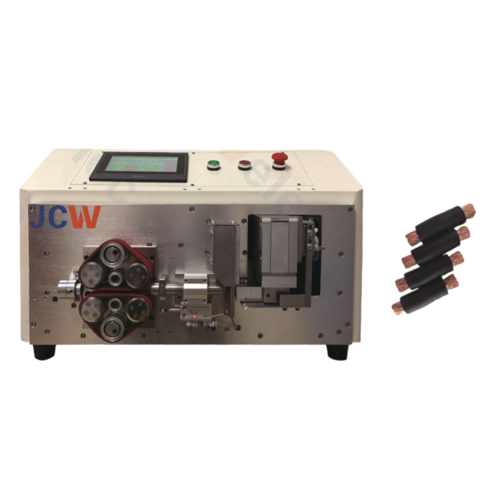

JCW JCW-CS07B Ultra-short 50mm² Heavy Cable Cutting & Stripping Machine (10-50 mm²)

Function: Servo-driven, belt transfer, wire measuring, cut into ultra-short length, single-end strip, dual-end strip, automatic length correction

Cutting length accuracy: Strip Length Increment 50-400 mm [proper length]: 0.01 mm

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Conductor cross-sections: 10-50 mm²

Length with Jacket Min: 25 mm (L=50 mm, strip 12.5 mm at both sides)

Leading (right) side: 50 mm [stripping]

Trailing (left) side: 25 mm [stripping]

Production rate: 500 pcs/h (L=50 mm, strip 12.5 mm at both sides)

Display: 7" color touchscreen, English / Chinese [other languages on request]

Data library: 100 programs

Dimensions: L 700 x W 620 x H 500 mm

Compatible peripherals: Cable prefeeder, cable stacker

Weight: 80 KG
