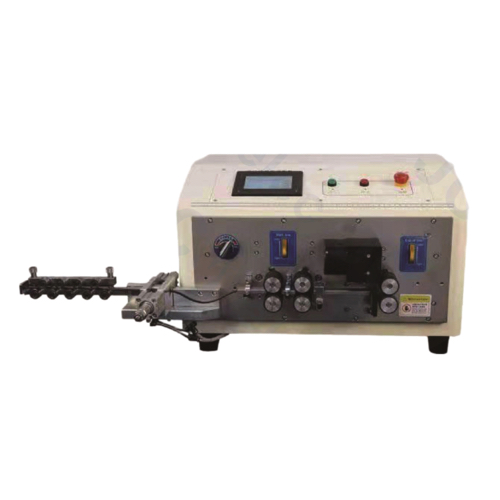

JCW JCW-CS06W Automatic Middle Splitting Cable Window Stripping Machine (0.1-16 mm², 0.1-999999 mm)

Function: Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Split length, Cut depth, Wire run-out sensor, Length correction

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Conductor cross-sections: 0.1-16 mm², 10 mm diameter

Cutting length (L): 0.1-999999 mm

Production rate: 600-1000 pcs/h, depends on the setting

Stripping length:

Front (right) side: 150 mm [partial stripping]

Rear (left) side: 70 mm [partial stripping]

Display: 4.3" color touchscreen, English / Chinese [other languages on request]

Compatible peripherals: Cable prefeeding unit, robot arm, cable stacker

Power supply: AC 110V-220V±10%, 50/60 Hz

Air supply: 0.4-0.7 MPa (clean and dry air)

Dimensions:

Machine: L 560 x W 470 x H 370 mm

Cable slitter & straightener: 470 mm

Weight: 55 KG
