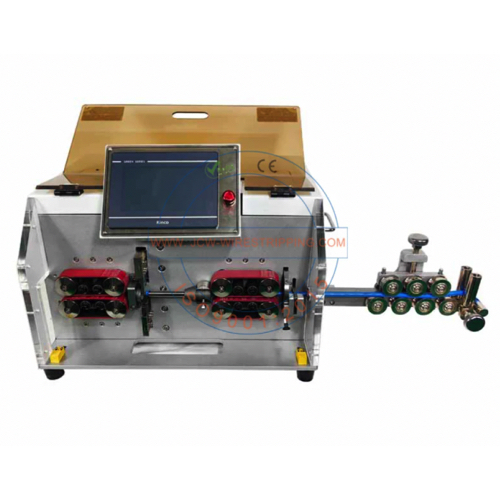

JCW JCW-CS05B Servo Model Cable Cutter Stripper (30 mm², 0.1 - 999999 mm)

Function: Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Length correction, Cable rewinding (optional)

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Cable range: 30 mm², 15 mm diameter [Customizable]

Cutting length (L): 0.1 - 999999 mm

Cutting length accuracy: 0.002 x L

Stripping length:

Front full strip: 1-200 mm, partial strip: 1-500 mm

Rear full strip: 1-80 mm, partial strip: 1-200 mm

Production rate: 800-1200 pcs/h

Data library: 100 programs

Cutter head: Servo motorized

Multicore cable: Only outer jacket stripping

Display: 7" color touchscreen, English / Chinese [other languages on request]

Cable feeding: Belt feeding system, 8 rollers

Compatible peripherals: Cable prefeeding machine, robot arm, conveyor belt, cable rewinding machine

Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply: 0.4 - 0.7 MPa (clean and dry air)

Dimensions: L 650 x W 580 x H 460 mm

Weight: 70 KG

CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

• Desktop version of JCW-CS05C

• Servo control cutter head

• Freestanding version on request

• Can be custom for 50mm² cable
