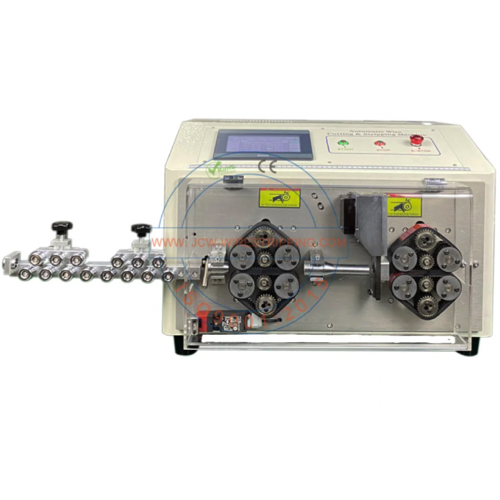

JCW JCW-CS05A Universal Belt Feed Wire And Cable Processing Machine (0.1 - 25/35 mm², 0.1 - 999999 mm)

Function: Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire lack sensor, Length correction

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Conductor cross-sections:

25SQ MODEL: 0.1 - 25 mm², 12 mm O.D

35SQ MODEL: 0.1 - 35 mm², 14 mm O.D

Guide inner diameter: 4 / 6 / 8 / 10 / 12 / 14 (16) mm

Cutting length (L): 0.1 - 999999 mm

Cutting length accuracy: 0.002 x L

Stripping length: Front (right) side: 100-250 mm, Rear (left) side: 70-120 mm, Middle strip: 13 sections

Production rate:

25SQ MODEL: 1000-1500 pcs/h by 100 mm wire length

35SQ MODEL: 800-1000 pcs/h by 100 mm wire length

Data library: 100 programs

Flat cable: Slit and strip, by changing straightener, guide, and blade

Multicore cable: Outer jacket stripping only

Display: 7" color touchscreen, English / Chinese [other languages on request]

Cable feeding: 12 rollers driven belt system

Blade type: V-blade, radius blade

Compatible peripherals: Cable prefeeding machine, robot arm, conveyor belt

Rated power: 1800 W

Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply: 0.4 - 0.7 MPa (clean and dry air)

Dimensions:

Machine: L 650 x W 580 x H 450 mm

Wire straightener: 350 mm

Weight: 75 KG

CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

• Upgraded version of CS05

• One machine for all cables from 0.1 to 25 or 35sqmm

• High-quality belt-feeding system

• 12 rollers driven by high torque hybrid step motors

• AV battery cable, multiconductor cable, PVC, Teflon, Silicone, Low halogen, Fiberglass cables

Video
