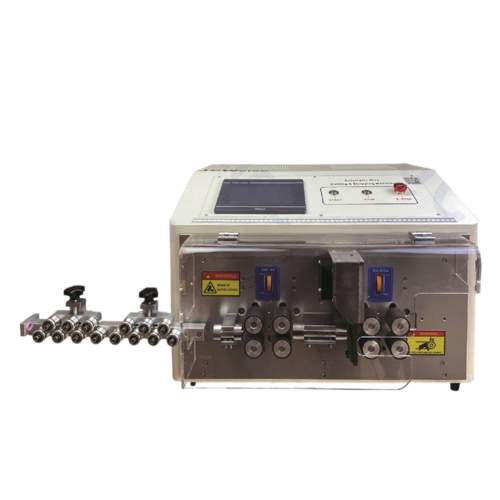

JCW JCW-CS05 Heavy-duty 12mm O.D. Automatic Battery Cable Stripping Machine (0.1-25 mm², 0.1-999999 mm)

Function: Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire lack sensor, Length correction

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Cutting length (L): 0.1-999999 mm

Conductor cross-sections: 0.1-25 mm², 12 mm diameter

Middle strip: 13 sections

Stripping length: Front (right) side: 250 mm [partial stripping], Rear (left) side: 120 mm [partial stripping]

Production rate: 1000 pcs/h by 100 mm wire length

Display: 7" color touchscreen, English / Chinese [other languages on request]

Compatible peripherals: Cable prefeeding machine, robot arm, conveyor belt

Power supply: AC 110V-220V ± 10%, 50/60 Hz

Air supply: 0.4-0.7 MPa (clean and dry air)

Dimensions: L 650 x W 580 x H 450 mm

Weight: 70 KG
