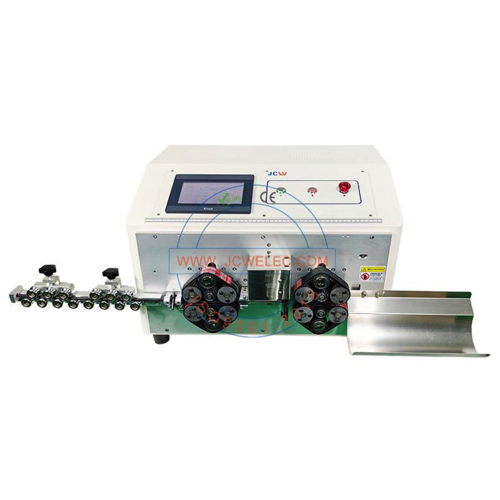

JCW JCW-CS04B Belt Feed 16SQ Cable Cutting Machine (16 mm², 0.1 - 999999 mm)

Function: Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire lack sensor, Length correction

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Conductor cross-sections: Up to 16 mm²

Guide inner diameter: 4 / 6 / 8 / 10 mm

Cutting length (L): 0.1 - 999999 mm

Cutting length accuracy: 0.002 x L

Stripping length: Front (right) side: 100 mm, Rear (left) side: 70 mm, Middle strip: 13 sections

Production rate: 1200-1800 pcs/h by 100 mm wire length

Data library: 100 programs

Multicore cable: Outer jacket stripping only

Display: 7" color touchscreen, English / Chinese [other languages on request]

Cable feeding: 12 rollers driven belt system

Blade type: V-blade / radius blade

Compatible peripherals: Cable prefeeding machine, robot arm, conveyor belt

Rated power: 1600 W

Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply: 0.4 - 0.7 MPa (clean and dry air)

Dimensions: Machine: L 650 x W 580 x H 450 mm

Weight: 65 KG

CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility
