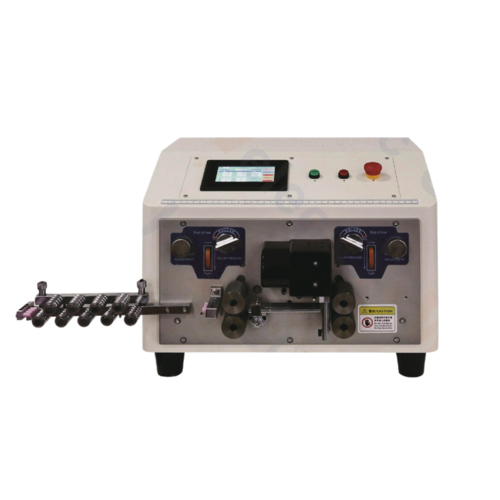

JCW JCW-CS03F High Efficiency 4 Wires Cut and Strip Machine (0.03-1.5 mm², 0.1-999999 mm)

Function: Wire measuring, Cut into length, Full stripping, Partial stripping, Middle strip, Length correction

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass

Conductor cross-sections: 0.03-1.5 mm²

Cutting length (L): 0.1-999999 mm

Cutting length accuracy: 0.002 x L

Stripping length: Front (right) side: 40 mm, Rear (left) side: 30 mm

Production rate: 16000 pcs/h by 50 mm wire length

Display: 4.3" color touchscreen, English / Chinese [Other languages on request]

Compatible peripherals: Wire prefeeder, robot arm, conveyor belt

Power supply: AC 110V-220V ± 10%, 50/60 Hz

Air supply: 0.4-0.7 MPa (clean and dry air)

Dimensions: L 460 x W 470 x H 350 mm, 33 KG
