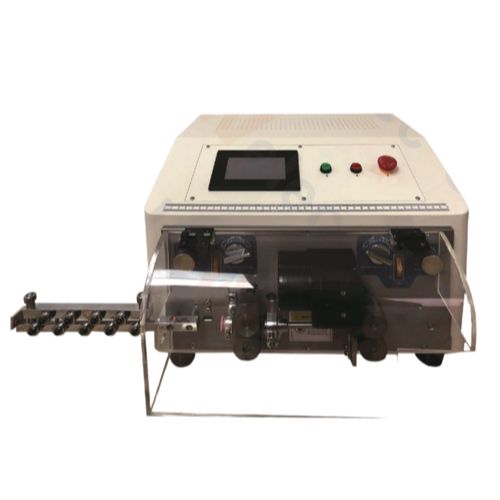

JCW JCW-CS03 Standard & Flexible Wire Cutting and Stripping Machine (0.03-6 mm², 0.1-999999 mm)

Function: Single wire, Multicore cable, Zip-cord, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Flat cable slitting, Wire lack sensor, Length correction, Thermal transfer printer

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Cutting length (L): 0.1-999999 mm

Conductor cross-sections: 0.03-6 mm²

Middle strip: 13 sections

Stripping length: Front (right) side - 50 mm, Rear (left) side - 30 mm

Production rate: 4700-9500 pcs/h by 50 mm wire length [single/double wire guider]

Display: 4.3" color touchscreen, English / Chinese [other languages on request]

Compatible peripherals: Cable splitter, wire prefeeder, robot arm, conveyor belt

Power supply: AC 110V-220V ± 10%, 50/60 Hz

Air supply: 0.4-0.7 MPa (clean and dry air)

Dimensions: L 460 x W 470 x H 350 mm

Weight: 35 KG
