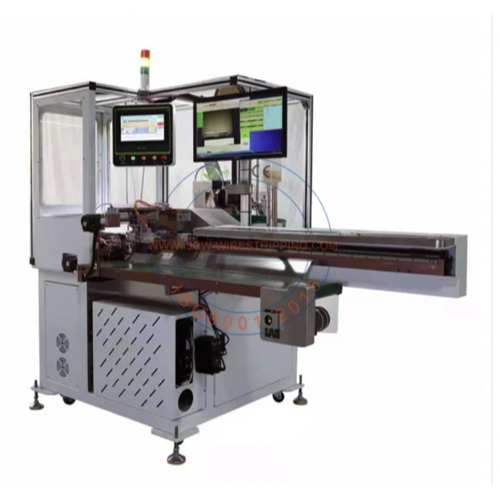

JCW JCW-CM10-ST Fully-auto VH Connector Housing Assembly System (AWG 26 - AWG 18, 35 - 1000 mm)

Function

Side A: wire stripping, terminal crimping, housing insertion.

Side B: wire stripping, conductor twisting, fluxing & tinning

Control system: Industrial computer, Window 7, English / Chinese

Wire length: AWG 26 - AWG 18

Cut length ( L ): 35 - 1000 mm (other lengths on request)

Cut length accuracy: ± { 0.2% x L + 1} mm

Strip length: 0.5 - 10 mm

Twist length: 1 - 10 mm

Tinning length: 0.5 - 10 mm

Crimping press: Mitsubishi servo motorized

Crimping force: 2 tons

Housing: VH 1.25 - VH 3.96

Product rate: 3500 - 4800 sets/h (depends on wire and housing)

Detection: Wire run-out, terminal run-out, air pressure, CCD for housing connector insertion

Optional peripherals: CCD for detecting terminal appearance, CFM

Air supply: 0.55 - 0.75 MPa [clean and dry air]

Rated power: 2500 W

Power supply: AC 110 - 220V ± 10%, 50 / 60 Hz

Dimensions: L 3000 x W 1470 x H 1700 mm

Weight: 540 KG

CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
