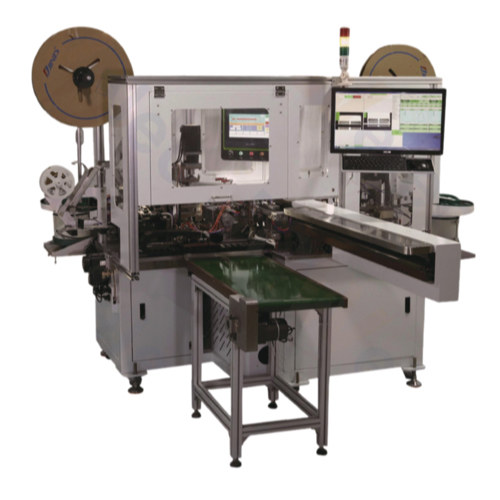

JCW JCW-CM10 Double-Head Housing Connector Assembly Machine (AWG 32-AWG 18, 30-1000 mm)

Function Side A: strip, tinning/crimping, housing insertion. Side B: strip, tinning/crimping, housing insertion, wire twisting.

Raw material: AV, AVS, AVSS, CAVUS, KVKIV, UL

Control system: Industrial computer, Window 7, English / Chinese

Wire range: AWG 32-AWG 18

Cut length (L): 30-1000 mm (other lengths on request)

Cut length accuracy: {0.2% x L + 1} mm

Strip length: Side A: 0.5-8 mm; Side B: 0.5-10 mm

Twist length: Side B: 110 mm

Tinning length: 0.5-10 mm

Crimping force: 2.0 tons

Housing: 2P-20P, Pitch 1.25 - VH3.96 mm

Air supply: 0.55-0.75 MPa [clean and dry air]

Dimensions: L 3500 x W 3300 x H 1700 mm

Weight: 800 KG

Product rate: 8000-15000 crimping/h (depends on wire and housing)

Detection: Wire run-out, terminal run-out, air pressure, CCD

Optional peripherals: CCD for detecting terminal appearance, CFM
