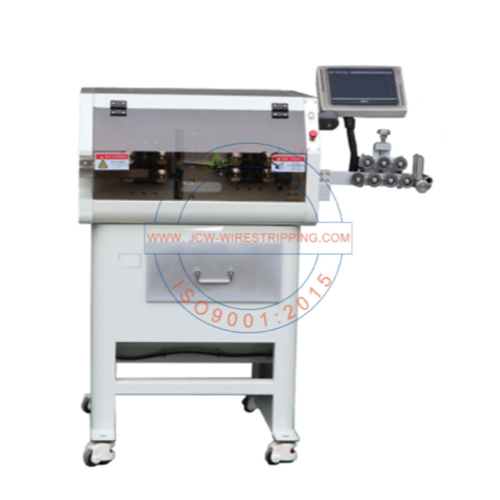

JCW JCW-C150 150sq Heavy-duty Cable Measuring and Cutting Machine (30-999999 mm, 30 mm)

Function: Cable measure, cut into length, cable & copper braid, speed & length adjustment

Raw material: PVC, Teflon, Low halogen, Fiberglass, etc

Cutting diameter: Max 30 mm

Conductor cross-section: Max 150 mm²

Cutting length (L): 30-999999 mm

Front end stripping: Max 800 mm

OEM: Yes

Rated power: 1600 W

Productivity: 1000 pcs/h (Varies with cable diameter)

Compatible accessories: Cable prefeeder, robot arm, cable stacker

Power supply: AC 110-220V + 10%, 50/60 Hz

Dimensions: L 900 x W 700 x H 1250 mm

Weight: 110 KG

• Process cable, copper braid, etc

• Servo motor controlled cutter head

• Cable range up to 150sqmm

• Customizable to be full servo motors

• Minimum cutting length 30MM
