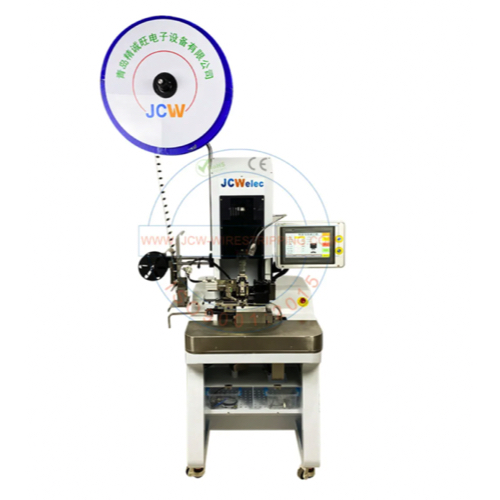

JCW JCW-8TC Heavy-duty 16mm² Wire Stripping to Crimping Machine (1 - 15 mm, 8 tons)

Function: Single wire, Multiconductor cable, Wire stripping, Terminal crimping

Terminal type: Side-feed type (horizontal)

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Crimp force: 8 tons

Conductor cross-sections: AWG 36 - AWG 5 [16 mm²]

Stripping length: 1 - 15 mm

Cutting accuracy: 0.05 - 0.1 mm

Position accuracy: 0.05 - 0.1 mm

Stroke: 30 mm

Stroke numbers: 4000 / h

Rated power output: 3000 W

Touch screen: 7", English

CFM: Compatible

Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply: 0.5 - 0.7 MPa (clean and dry air)

Dimensions: L 1200 x W 800 x H 2100 mm

Weight: 150 KG

• Wire stripping and terminal crimping in one cycle

• Servo motor control crimping machine, fully programmable

• Adapt Europe mini-style terminal crimp applicator

• 8 tons crimping force, wire range up to 5AWG (16mm²)

• Stripping length up to 15mm

• Scrap collector ensures a clear working area
