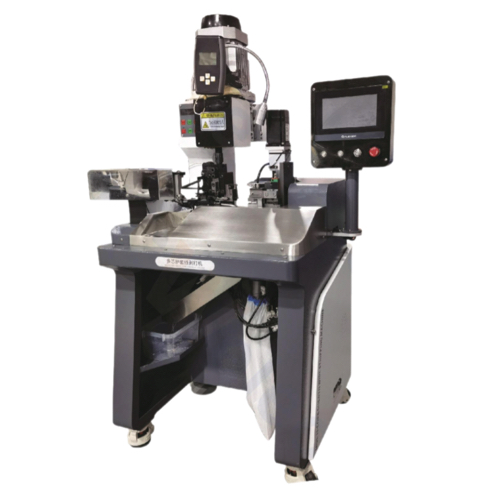

JCW JCW-2TP Multiconductor Cable Stripping and Crimping Machine (13.5 mm, 25 mm, 2 tons)
ManufacturerJCW(View more products from this manufacturer)
ModelJCW-2TP
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections: 0.6-2.5 mm
Crimp force: 2 tons
Stroke: 30 mm
Product rate: 700-1000 pcs/hr
Sheath stripping length:
2-4 cores: minimum 13.5 mm
5-15 cores: minimum 25 mm
Inner cores numbers: 2-15 cores [Over 25 cores is customizable]
CFM: Optional
Rated power: 1500 W
Power supply: AC 110V-220V±10%, 50/60 Hz
Air supply: 0.4-0.6 MPa (clean and dry air)
Dimensions: L 850 x W 550 x H 1350 mm
Weight: 150 KG
