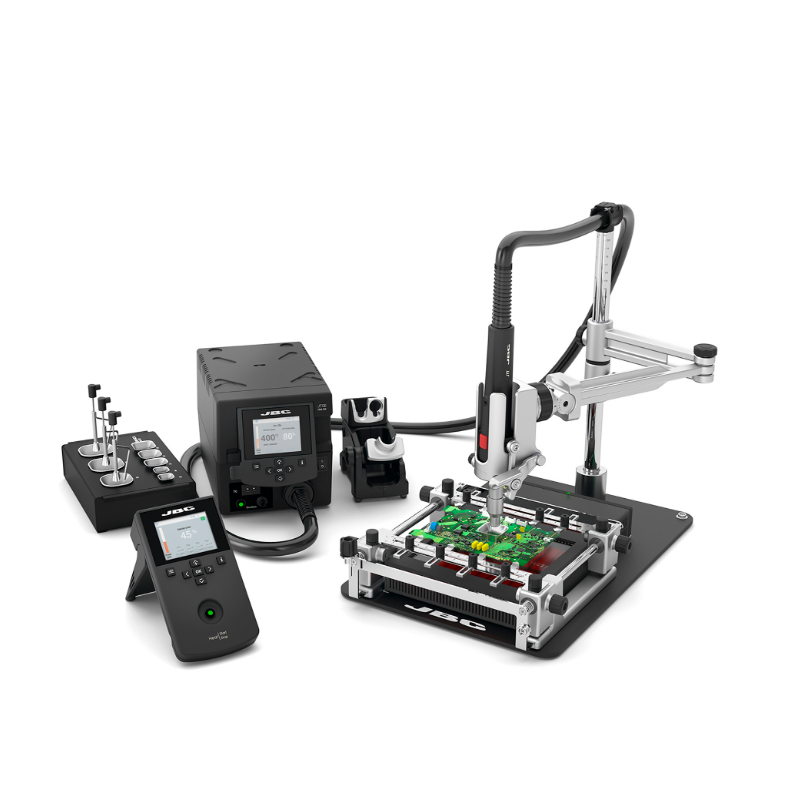

JBC SRWS-2SC SMD Rework System (700W, 150 ~ 450°C)

JTSE CONTROL UNIT

Peak power: 700W

Selectable temperature: 150 to 450 °C / 300 to 840 °F

Air flow regulation: 5 to 50 SLPM

Vacuum: 30% / 228 mmHg / 9 inHg

Profiles: 25 (up to 10 steps for each), 1 preset profile

Type K TC connector: 1 for Control & Protection

ESD safe: Meet ANSI / ESD S20.20-2021

USB-A:

Firmware update

Graphics and profiles

USB-B: PC communications

Robot connector: Remote control or FAE Fume Extractor connection

PHSE PREHEATER

Peak power: 600W

Selectable temperature: 50 to 250ºC / 120 to 482ºF

Heating area:

65 x 135 mm / 2.6 x 5.3 in - 1 zone

130 x 135 mm / 5.1 x 5.3 in - 2 zones

Type K TC connector: 4 for control & protection

Profiles: 22 (up to 6 steps for each), 3 preset profiles

Maximum work time: 600 min. or indefinite

ESD safe: Meet ANSI/ESD S20.20-2021

USB-A:

Firmware update

Graphics and profiles

USB-B: PC communications

Robot connector: Remote control

Aux. connector: Console connection

WEIGHT AND DIMENSIONS

Control Unit: 232 x 148 x 160 mm / 16.59 kg. (9.13 x 5.83 x 6.30 in / 36.57 lb.)

Package: 700 x 410 x 390 mm / 23.10 kg. (27.56 x 16.14 x 15.35 in / 50.93 lb.)
