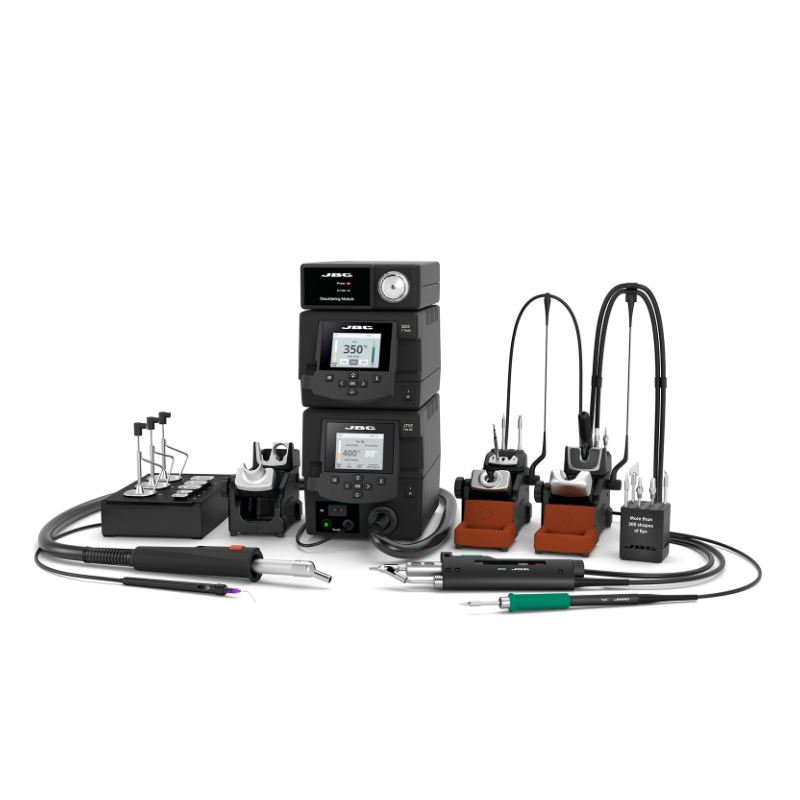

JBC RMSE-2QF Complete Rework System

JTSE CONTROL UNIT

Peak power: 700 W

Selectable temperature: 150 to 450 °C / 300 to 840 °F

Air flow regulation: 5 to 50 SLPM

Vacuum: 30% / 228 mmHg / 9 inHg

Profiles: 25 (up to 10 steps for each), 1 preset profile

Type K TC connector: 1 for Control & Protection

ESD safe: Meet ANSI / ESD S20.20-2021

USB-A:

Firmware update

Graphics and profiles

USB-B: PC communications

RJ12 Connector: Remote control or FAE Fume Extractor connection

DDE CONTROL UNIT

Peak power: 150 W per tool

Selectable temperature: 90 to 450 ºC / 190 to 840 ºF

Temperature accuracy: ±3%

ESD safe: Meet ANSI/ESD S20.20-2021

Tip-to-ground resistance: <2 ohms

Tip-to-ground voltage: <2 mV RMS

USB-A:

Firmware update

Graphics and profiles

USB-B: PC communications

FAE / Robot connector: Remote control or FAE Fume Extractor connection

MSE MODULE

Vacuum: 75% / 570mmHg / 22.4inHg

Flow rate: 9 SLPM

ESD safe: Meet ANSI/ESD S20.20-2021

WEIGHT AND DIMENSIONS

Control Unit: 232 x 148 x 295 mm / 14.55 kg. (9.13 x 5.83 x 11.61 in / 32.09 lb.)

Package:700 x 410 x 390 mm / 20.20 kg. (27.56 x 16.14 x 15.35 in / 44.53 lb.)
