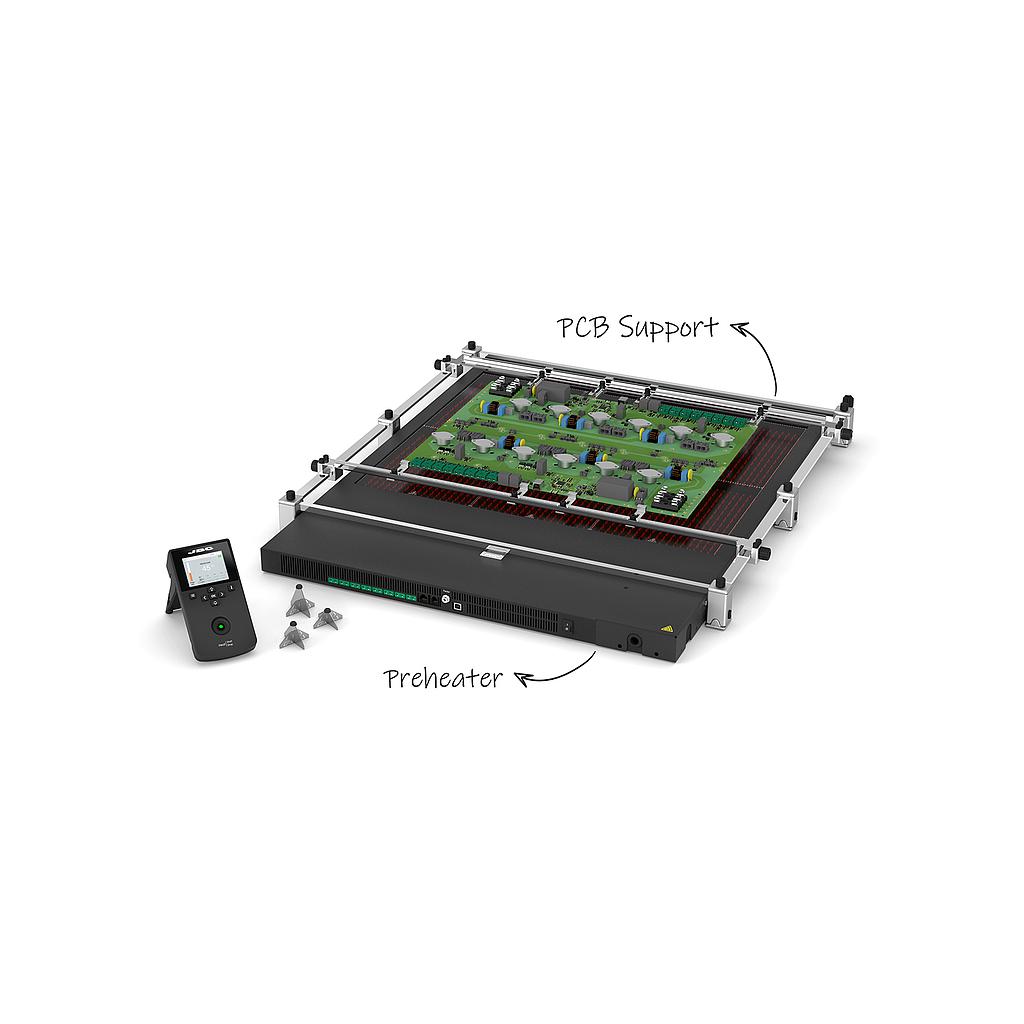

JBC PHXLE-2KA Preheater Set for PCBs (230V, 5400 W, 50 ~ 250 ºC)

Peak power: 800 W

Selectable temperature 50 to 250 ºC / 120 to 482 ºF

Heating area

255 x 203 mm / 10.04 x 8 in - 1 zone

510 x 610 mm / 20 x 24 in - 6 zones

Type K TC connector: 8 for Control & Protection

Profiles: 22 (up to 16 steps for each)

Set temperature profiles: 3 profiles (2, 3 or 4 steps)

Maximum work time: 50 min or indefinite

ESD safe: Meet ANSI/ESD S20.20-2021

USB-A: Firmware update/ Graphics and profiles

USB-B: PC communications

Robot connector: Remote control

Aux. connector: Console connection

Pedal connector: Connect a pedal (ref. P-005) to control the heater

Weight and dimensions

PreHeater Unit

790 x 664 x 42 mm / 23.00 kg.

31.10 x 26.14 x 1.65 in / 50.71 lb.

PRODUCT COMPOSITION

1 Heater unit

1 Console

1 PHXLS Support for PCBs up to 51 x 61 cm / 20 x 24 in

1 PH204 Metallic PCB Support L1 for PHXLS

1 PH205 Metallic PCB Support L2 for PHXLS

1 PH206 Metallic PCB Support L3 for PHXLS

3 PH218 Thermocouple Type K

1 PH217 Kapton Tape

Manual
