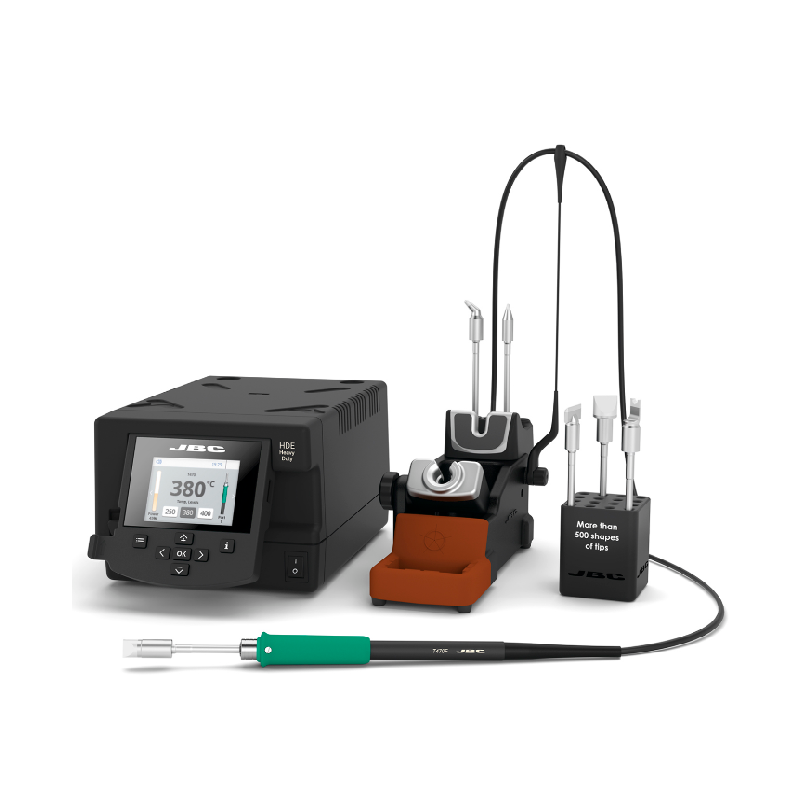

JBC HDE-2E Heavy Duty Soldering (250 W, 90 - 500°C)

Peak power (Tool): 250 W – 42 V

Selectable temperature: 90 - 500 °C / 190 - 932 °F

Temperature accuracy: ±3 %

Tip-to-ground resistance: <2 ohms

Tip-to-ground voltage: <20 mV RMS

USB-A:

Firmware update

Graphics and profiles

USB-B: PC communications

FAE / Robot connector: Remote control or FAE Fume Extractor connection

ESD safe: Meet ANSI/ESD S20.20-2021

Control Unit: 232 x 148 x 120 mm / 5.37 kg / 9.13 x 5.83 x 4.72 in / 11.84 lb

Package: 450 x 345 x 243 mm / 6.82 kg./ 17.72 x 13.58 x 9.57 in / 15.04 lb.
