JBC HA245A-5B Automatic General Soldering Set for Robot (90 ~ 450 ºC, 160 W - 21 V)

Peak power: 160 W - 21 V

Selectable temperature: 90 to 450 ºC / 190 to 840 ºF

Solder wire length: 0.5 to 250 mm / 0.02 to 9.84 in

Solder wire speed: 0.5 to 120 mm/s / 0.02 to 4.72 in/s

Wire diameter: 0.5 to 1.5 mm / 0.020 to 0.062 in

ESD safe: Meet ANSI/ESD S20.20-2021

Tip-to-ground resistance: <2 ohms

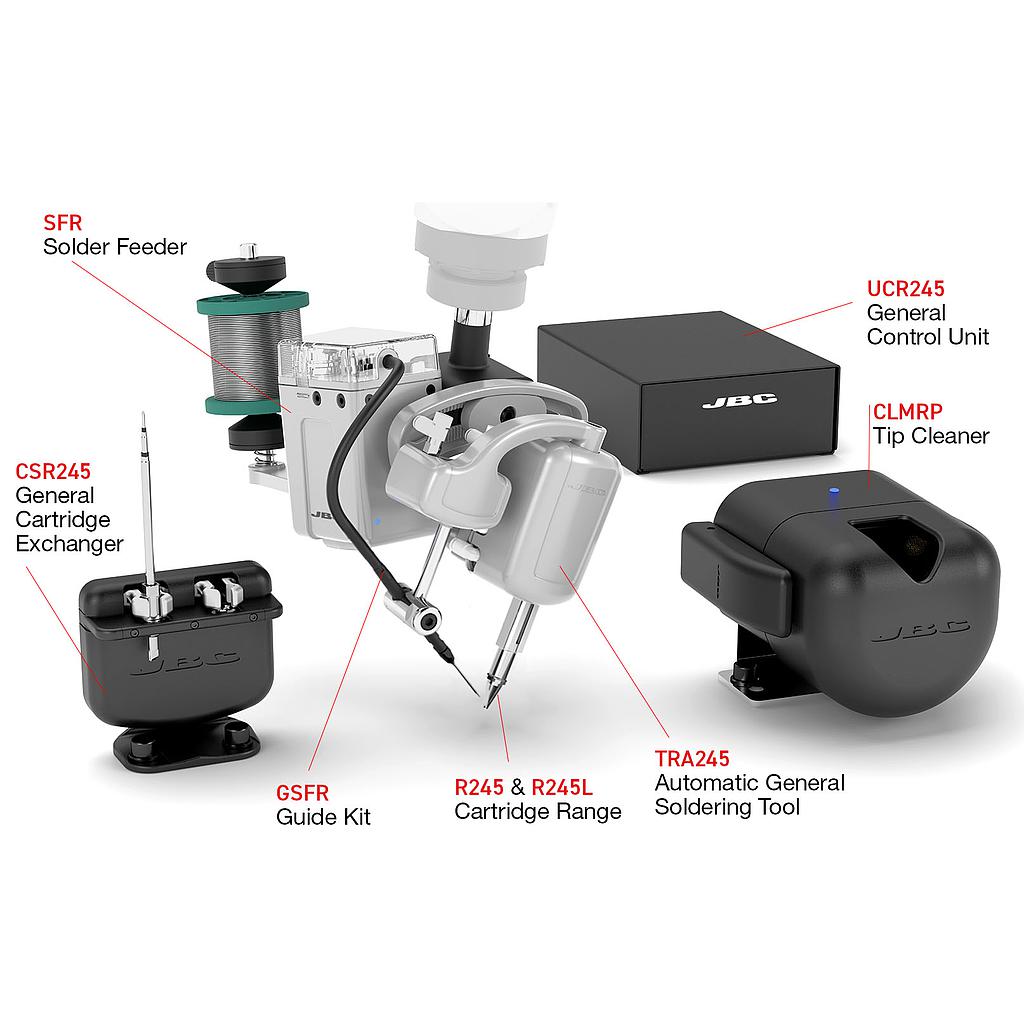

PRODUCT COMPOSITION

1 UCR245 General Control Unit for Robot

1 CSR245 General Cartridge Exchanger for Robot

1 TRA245 Automatic General Soldering Tool for Robot

1 SFR Solder Feeder for Robot

1 CLMRP Tip Cleaner for Robot with Fiber Brushes (non metal)
