JBC DMSD-2QB Precision Rework (230V, 90 ~ 450 ºC / 190 ~ 840 ºF, 200W)

DME Control Unit

Nominal power: 200 W

Peak power: 150 W per tool

Selectable temperature: 90 to 450 ºC / 190 to 840 ºF

Idle temp. stability (still air): ±1.5 ºC / ±3 ºF, meets and exceeds IPC J-STD-001F

Temperature accuracy: ±3 % (using reference cartridge)

Temp. adjustment: ±50 ºC / ±90 ºF through station setting menu

Tip to ground vol. / resist.: Meets and exceeds ANSI/ESD S20.20 and IPC J-STD-001F

Ambient operating temp: 10 - 40 ºC / 50 - 104 ºF

Connections USB-A: Firmware update, graphics and profiles, Dino-Lite USB microscope (models AM2011, AM2111)

Connections USB-B: PC communication

Connections RJ12: Fume extractor / peripherals / robot

MSE Module

Power: 42 W

Vacuum: 85 % / 640 mmHg / 25.4 inHg

Flow rate: 35 SLPM

Ambient operating temp: 10 - 40 °C / 50 - 104 °F

Pedal connector: Yes

Compliance

CE standards: Complies

ESD safe: Yes

Weight and Dimensions

Control unit dimensions: 232 × 148 × 120 mm

Control unit weight: 7.23 kg

Dimensions (inch): 9.13 × 5.83 × 4.72 in

Weight (lb): 15.93 lb

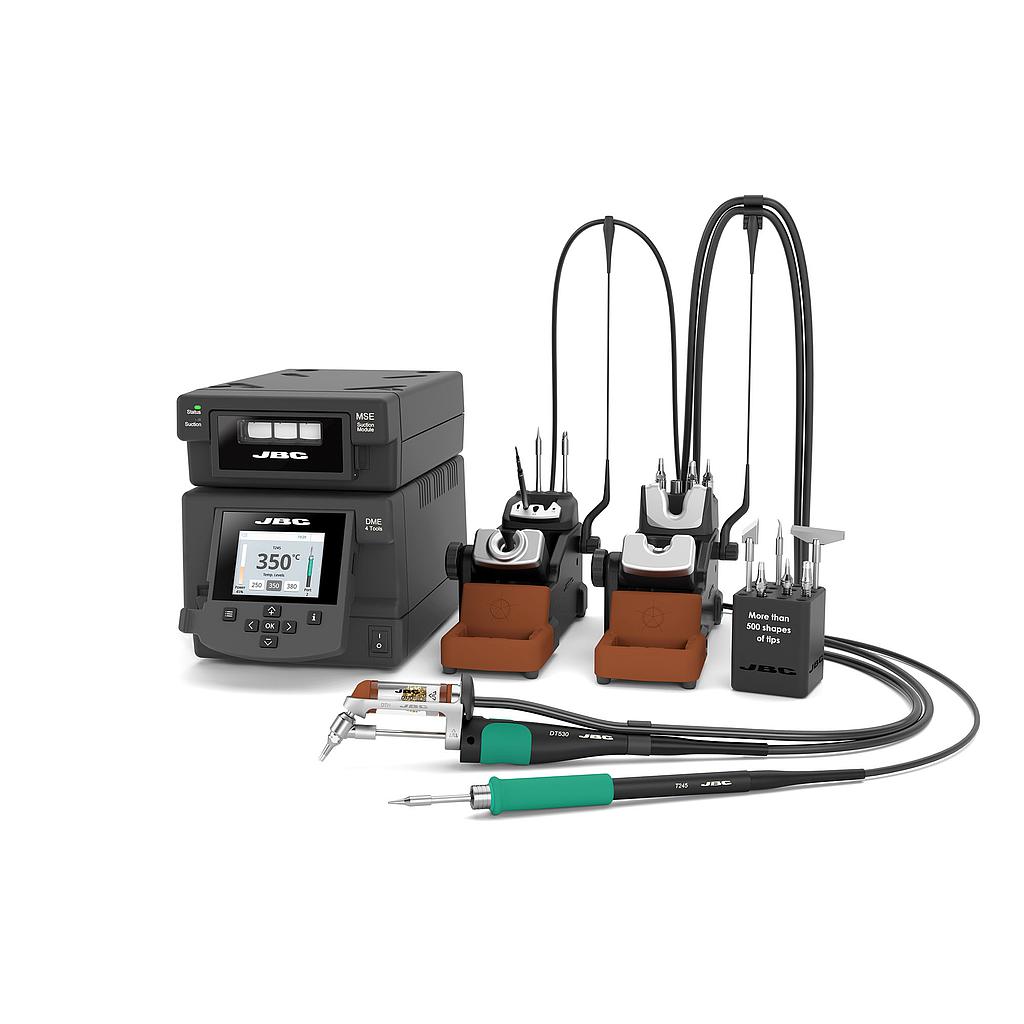

Product Composition

1 - DME 4-Tool Control Unit

1 - MSE Electric Desoldering Module for DDE & DME

1 - T245 General Purpose Handle (cartridge not included)

1 - DT530 Angled Desoldering Iron (D530003 already inserted)

1 - ADS Stand for T210 & T245

1 - DTS Stand for DT530

1 - SCH Cartridge & Tips Holder
