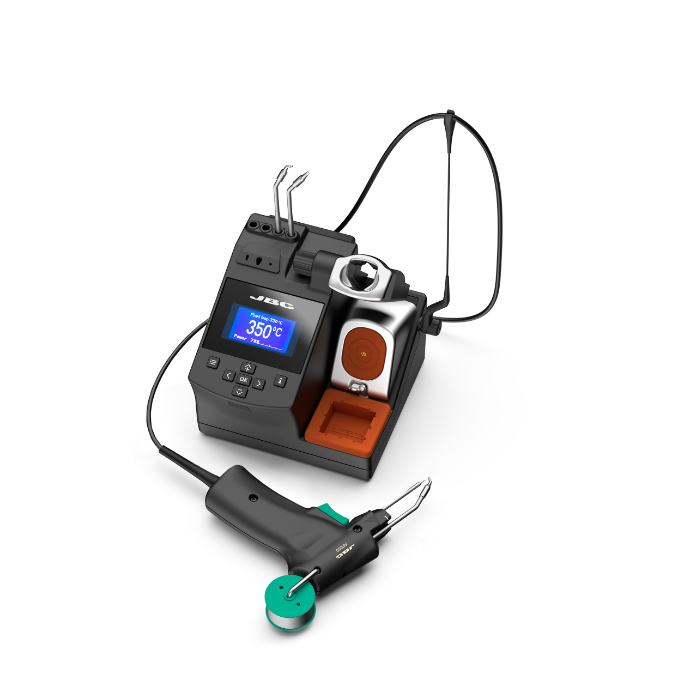

JBC CA-2QG Manual-Feed Soldering Station (175W, 90 - 450 °C)

Nominal Power: 175W

Peak power (Tool): 130W

Selectable temperature: 90 to 450 ºC / 190 to 840 ºF

Idle temp. stability (still air): ±1.5 ºC / ±3 ºF (Meets and exceeds IPC J-STD-001)

Temperature accuracy: ±3 % (Using reference cartridge)p

Temp. adjustment: ±50 ºC / ±90 ºF (Through station menu setting)

Tip-to-ground resistance: <2 ohms

Tip-to-ground voltage: <2 mV RMS

USB-B: PC communications

FAE / Robot connector: Remote control or FAE Fume Extractor connection

Solder wire diameter:

from 0.8 - 1 mm / 0.03 - 0.04 in

from 1.1 - 1.5 mm / 0.04 - 0.06 in

Earthing fuse: F 1.25A

ESD safe: Meet ANSI/ESD S20.20-2021

Control Unit: 170 x 176 x 145 mm / 2.91 kg. (6.69 x 6.93 x 5.71 in / 6.42 lb.)

Package: 234 x 234 x 258 mm / 3.52 kg. (9.21 x 9.21 x 10.16 in / 7.76 lb.)
