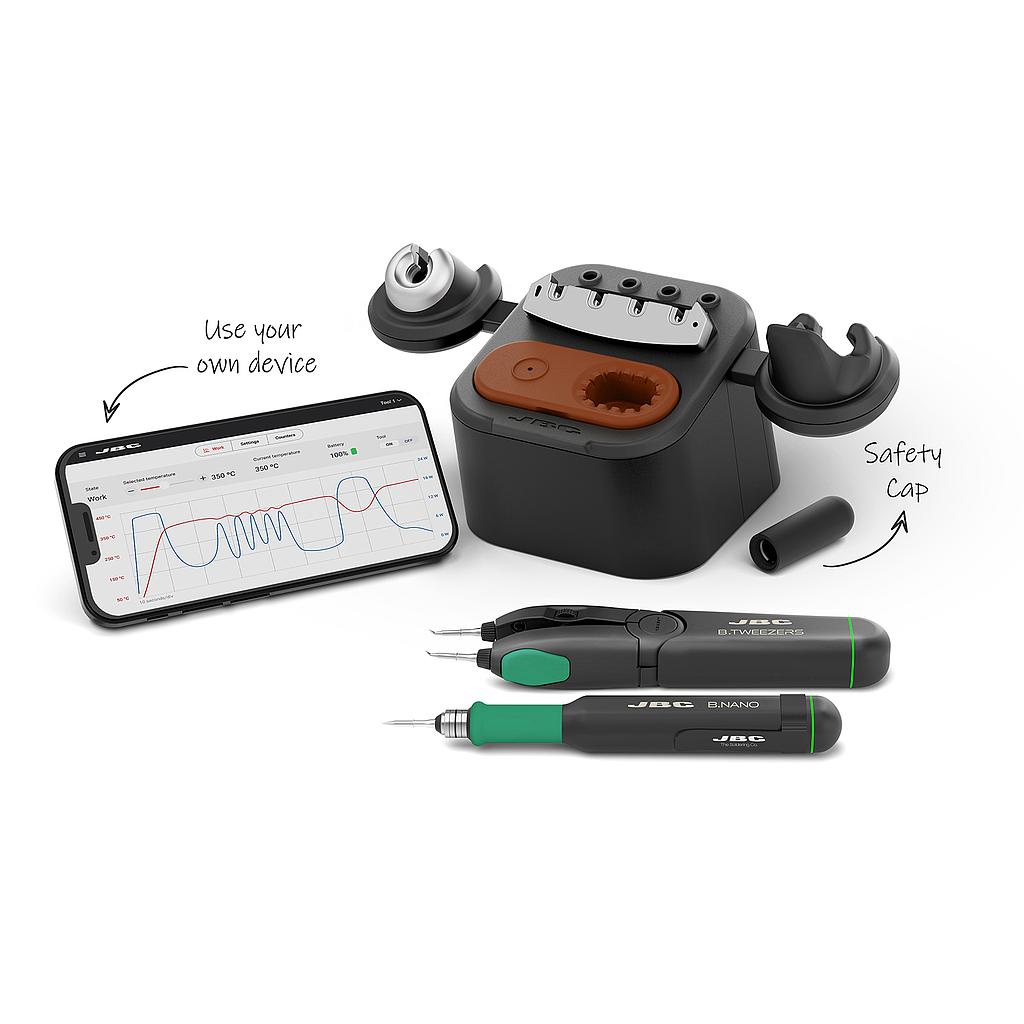

JBC BINP-5B Dual Battery-Powered Rework (With Portable Display, 100 ~ 450 ºC / 210 ~ 840 ºF)

Stand

Input voltage: 100 V - 240 V 50/60 Hz

Power: 15 W

USB output: 5 V / 1000 mA

Tool

Peak power: 15 W

Selectable temperature: 100 to 450 ºC / 210 to 840 ºF

Temperature accuracy: ±3 %

Battery (Tool)

Type: Li-Ion 7.4 V / 180 mAh

Charge time: 45 minutes

Weight: 57 g / 0.126 lb

Safety

ESD safe: Meets ANSI/ESD S20.20

Console

Screen size: 8.6"

Connectivity: Bluetooth 4.2

Battery (Console)

Type: Li-Ion 3.7 V / 5000 mAh

Weight and Dimensions

System dimensions: 215 × 199 × 211 mm

System weight: 2.25 kg

Dimensions (inch): 8.46 × 7.83 × 8.31 in

Weight (lb): 4.96 lb

Product Composition

1 - BCB Charging-Base

1 - B.TWEEZERS Nano Tweezers

1 - B.NANO Nano Tool

1 - C115101 Conical Ø 0.1

1 - C115103 Conical Ø 0.3 S1

2 - C115105 Conical Bent Ø 0.3

1 - C115107 Conical Ø 0.8

1 - C115112 Knife 2.5 × 0.3

2 - C115113 Chisel 1 × 0.3

1 - HPTE0C9SA High-Precision Tweezers

1 - B1596 Safety Cap

Datasheet
