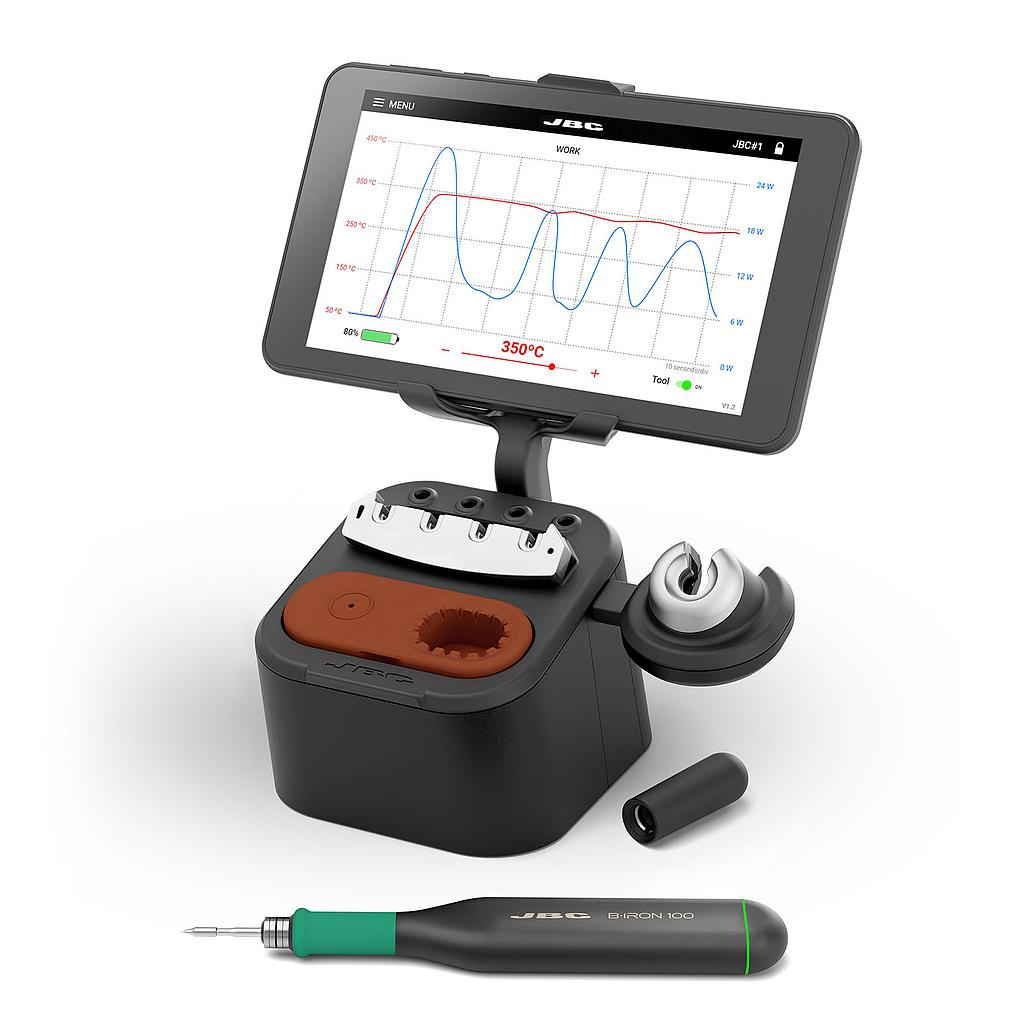

JBC BIN-5QA Battery- Powered Nano Soldering Station (Without Portable Display, 15 W, 100 ~ 450ºC)

CHARGING BASE

Input voltage: 100 V - 240 V 50/60 Hz

Power: 40 W

Tool output: 12 V / 1000 mA

USB output: 5 V / 1000 mA

TOOL

Output peak power: 15 W

Selectable temperature: 100 to 450ºC / 210 to 840ºF

Temperature accuracy: ± 3% (Using reference cartridge)

Ambient Operating Temp: 10 - 50 °C / 50 - 122 °F

Tool Weight: 35 g / 0.077 lb

Charge time: 30'

ESD safe: Meet ANSI/ESD S20.20-2021

CONSOLE

Screen size: 7" / 7 in

Connectivity: Bluetooth Low Energy (BLE)

Battery: Li-Ion 3.7V / 2500mAh

Weight and dimensions

B·IRON System

202 x 200 x 211 mm / 1.94 kg.

7.95 x 7.87 x 8.31 in / 4.28 lb

Product composition

1 Instruction Manual

1 B·NANO Nano Handle for B·IRON

1 C115101 Conical Ø 0.1

1 BCB Charging-Base for B·IRON

1 B1596 Safety Cap for B·IRON Handles

Manual
