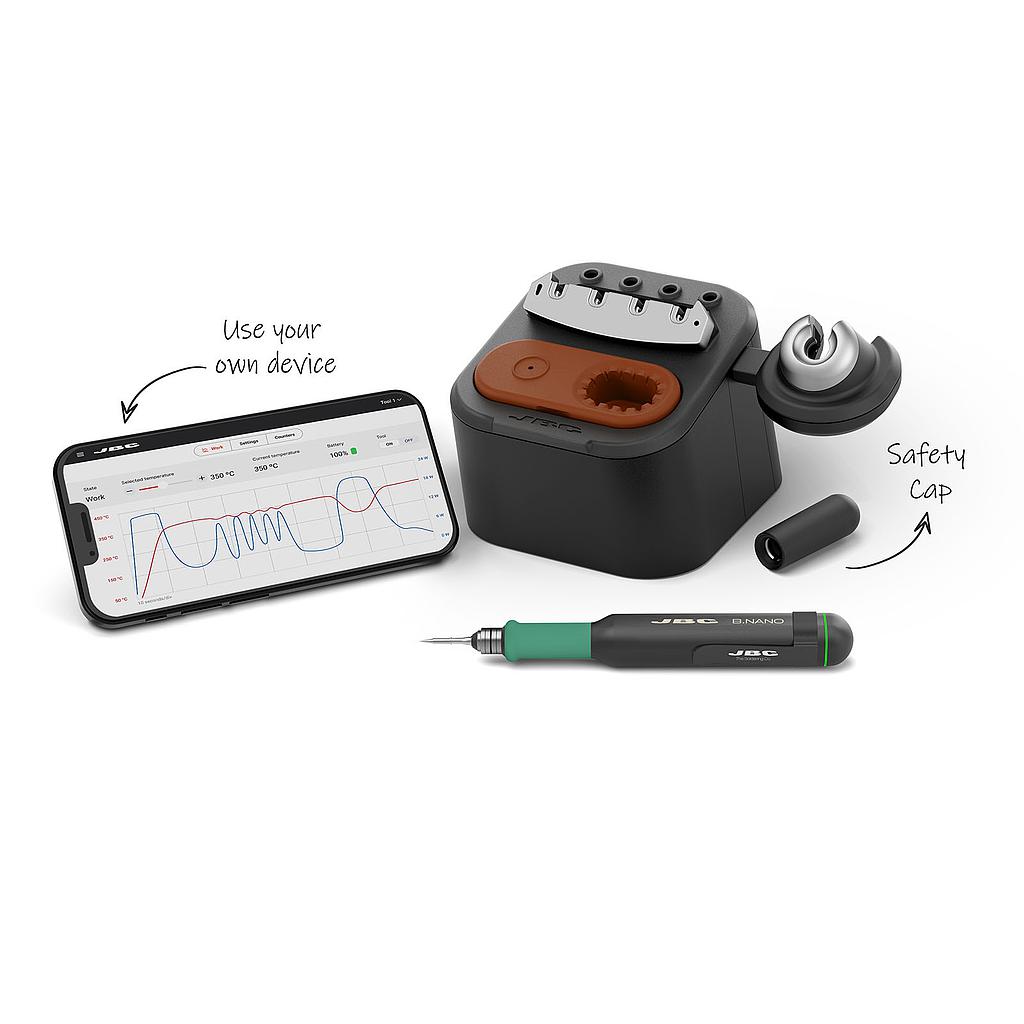

JBC BIN-5B Battery-Powered Nano Soldering Station (With Portable Display, 100 ~ 450 ºC / 210 ~ 840 ºF)

Stand

Input voltage: 100 V - 240 V 50/60 Hz

Power: 40 W

Tool output: 12 V / 1000 mA

USB output: 5 V / 1000 mA

Tool

Peak power: 15 W

Selectable temperature: 100 to 450 ºC / 210 to 840 ºF

Temperature accuracy: ±3 % (using reference cartridge)

Battery: Li-Ion 7.4 V / 120 mAh

Charge time: 30 minutes

Ambient operating temp: 10 - 50 ºC / 50 - 122 ºF

Weight: 35 g / 0.08 lb

ESD safe: Meets ANSI/ESD S20.20

Console

Screen size: 8.6"

Connectivity: Bluetooth 5.0

Battery: Li-Ion 3.7 V / 5000 mAh

Weight and Dimensions

System dimensions: 202 × 200 × 211 mm

System weight: 2.15 kg

Dimensions (inch): 7.95 × 7.87 × 8.31 in

Weight (lb): 4.74 lb

Product Composition

1 - Instruction manual

1 - BCB Charging-Base

1 - B.IRON Nano Tool

1 - C115101 Conical Ø 0.1

1 - C115113 Chisel 1 × 0.3

1 - HPTE0C9SA High-Precision Tweezers

1 - B1596 Safety Cap

Datasheet
